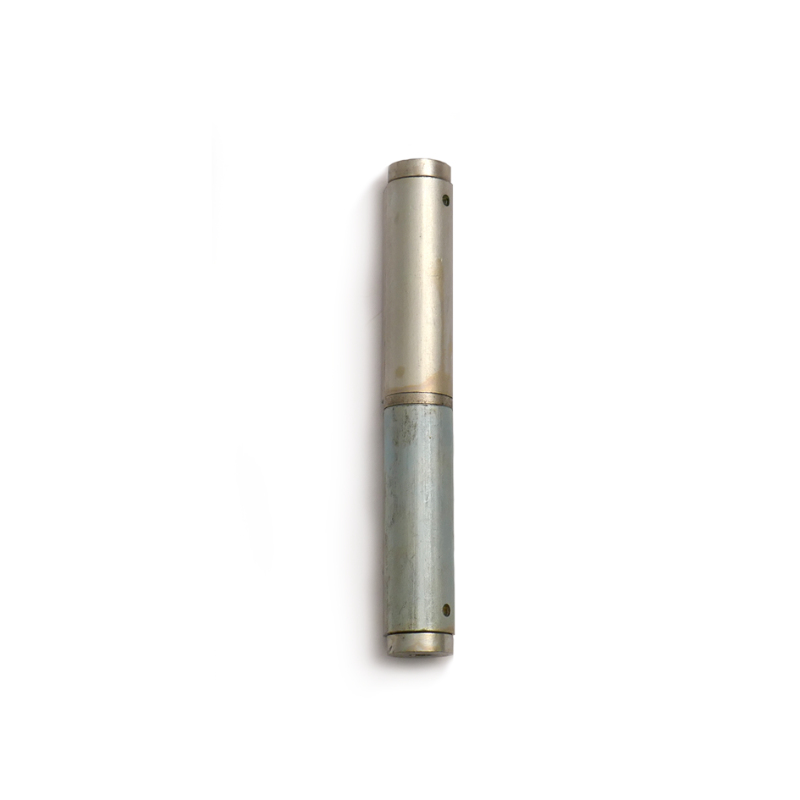

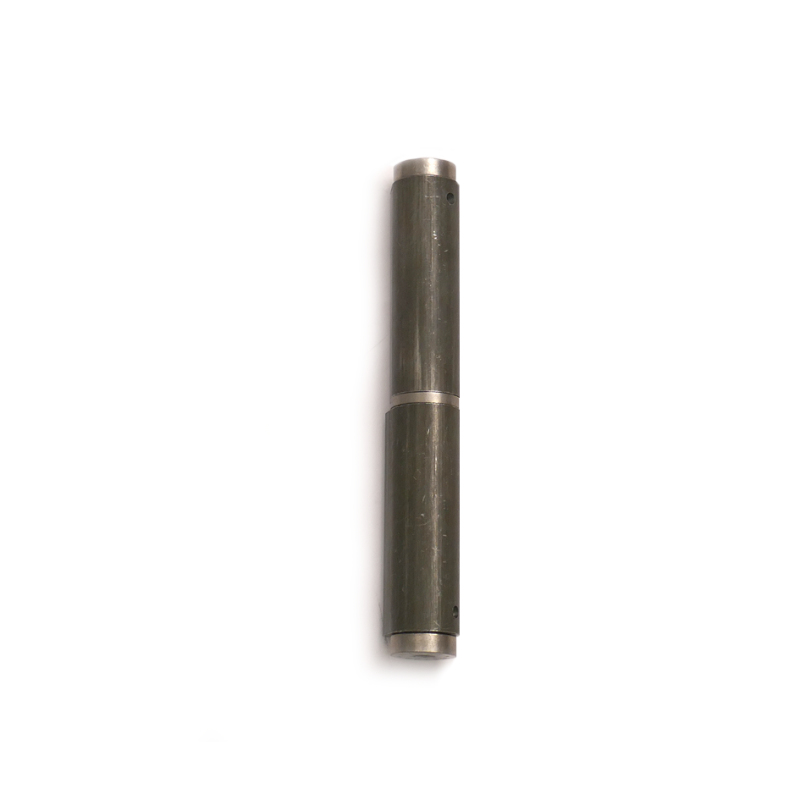

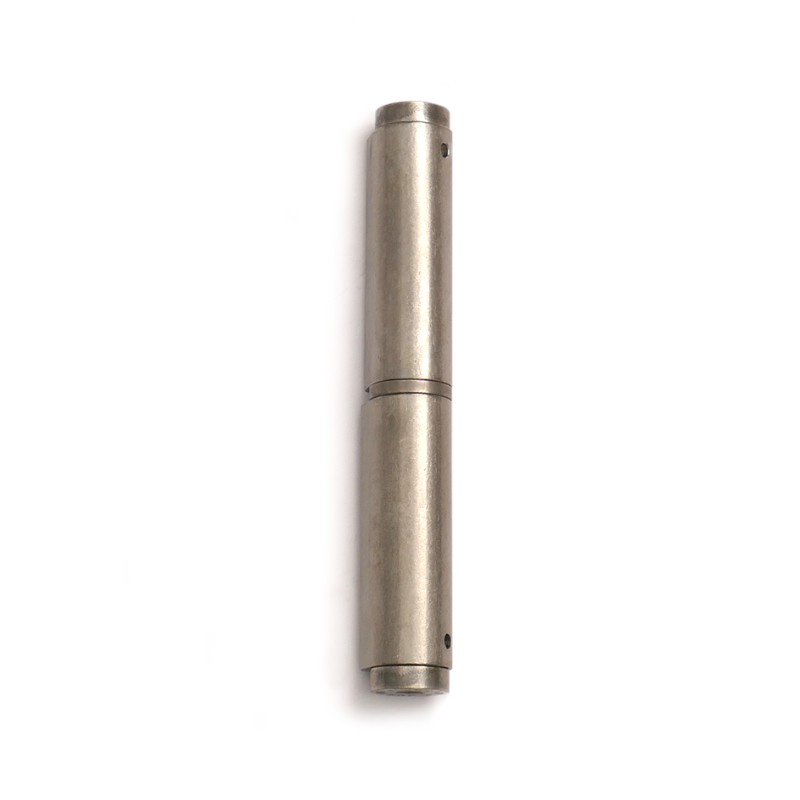

Drop Pin with Washer - Justor PG 120 180 240 - Case of 2 Pieces
Drop pin with Justor PG washer for mounting in doors by welding.
These washer drop pins have a high resistance to deformation and 3 adjustable force positions.
Justor pins manufactured in
iron or galvanized iron or stainless steel . Select the model you want based on your specific needs.

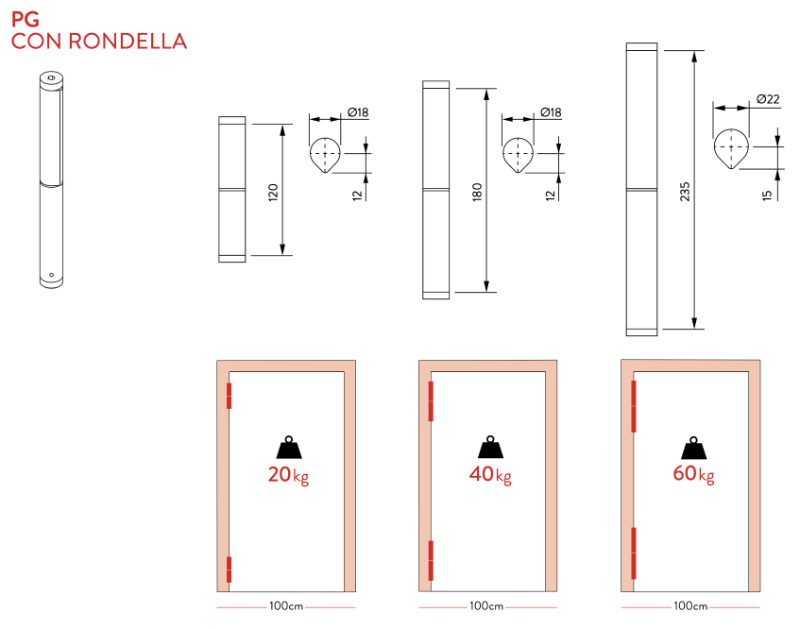

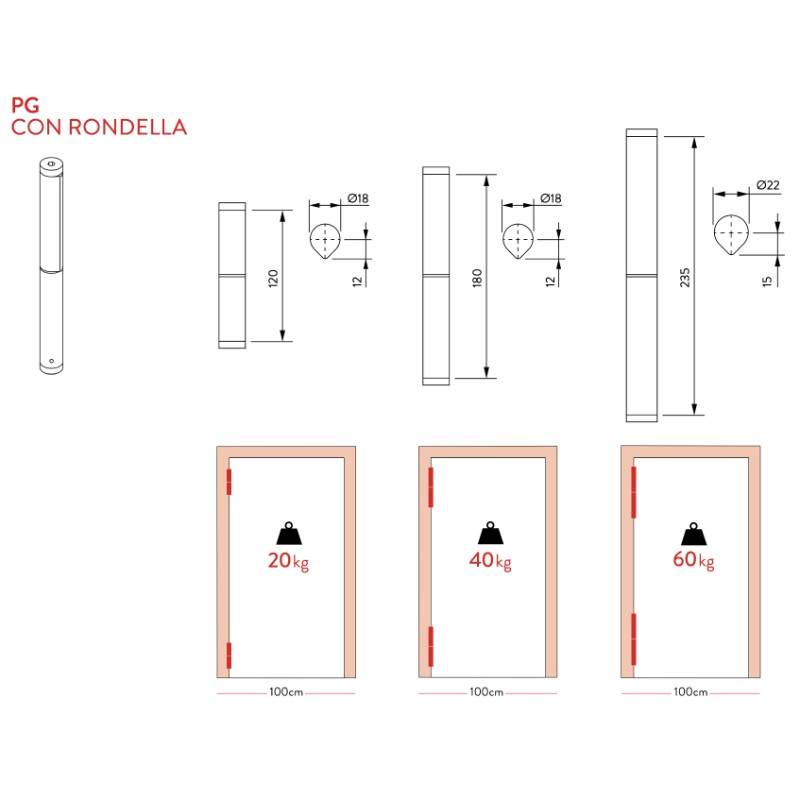

Drop pin with washer - Justor PG 120
- Units installed 2;
- Door width 100cm;
- Door weight 20 kg.
Teardrop Pin with Washer - PG180
- Units installed 2;
- Door width 100cm;
- Door weight 40 kg.
Drop pin with washer - PG 240
- Units installed 2;
- Door width 100cm;
- Door weight 60 kg.
External materials of the teardrop pins with washer
- Body: steel
- Adjustment cap: carbon steel
- Washers: stainless steel
Internal materials of the teardrop pins with washer
- Shaft inside: AISI 304 stainless steel (120, 180) or steel (240);
- Internal spring: stainless steel (120) or steel (180, 240) sheet set with protective grease.

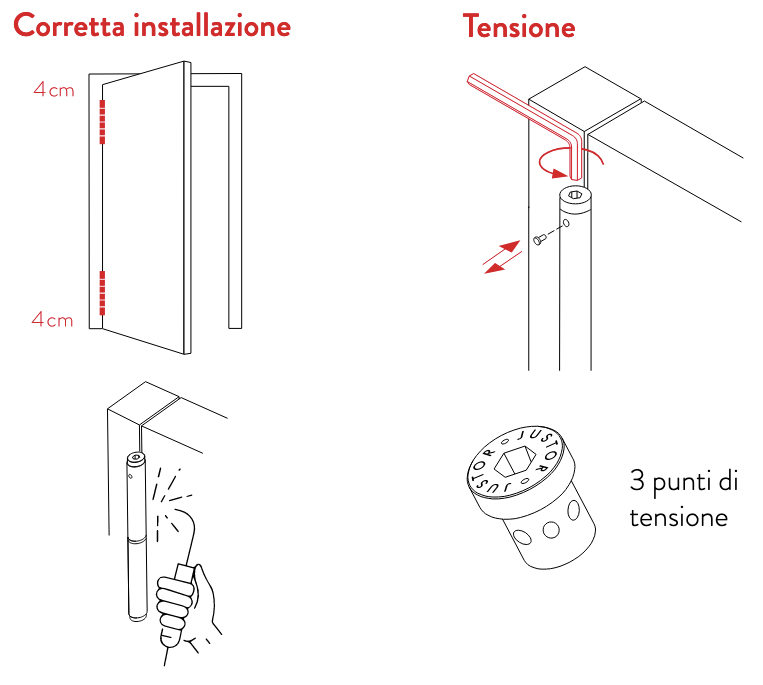

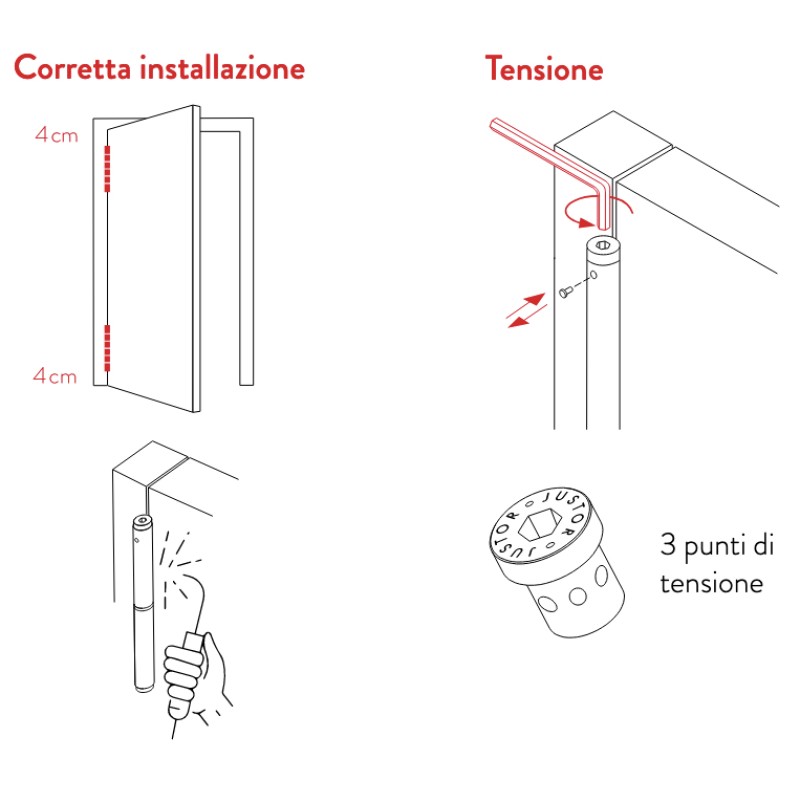

Operation of the Justor PG pin
- Application: Suitable for interior/exterior doors;
- Automatic return: yes;
- Power regulator: yes;
- Maximum opening: 180º;
- Cycles: more than 500,000.
