Band Pin with Bearing Justor PPM CR

Justor
Brands: Justor
Code: PPM CR
€ 85,71
Prices excluding VAT
Are you looking for a product from the Justor catalog that is not on our site? Contact us and ask for a quote.

- +

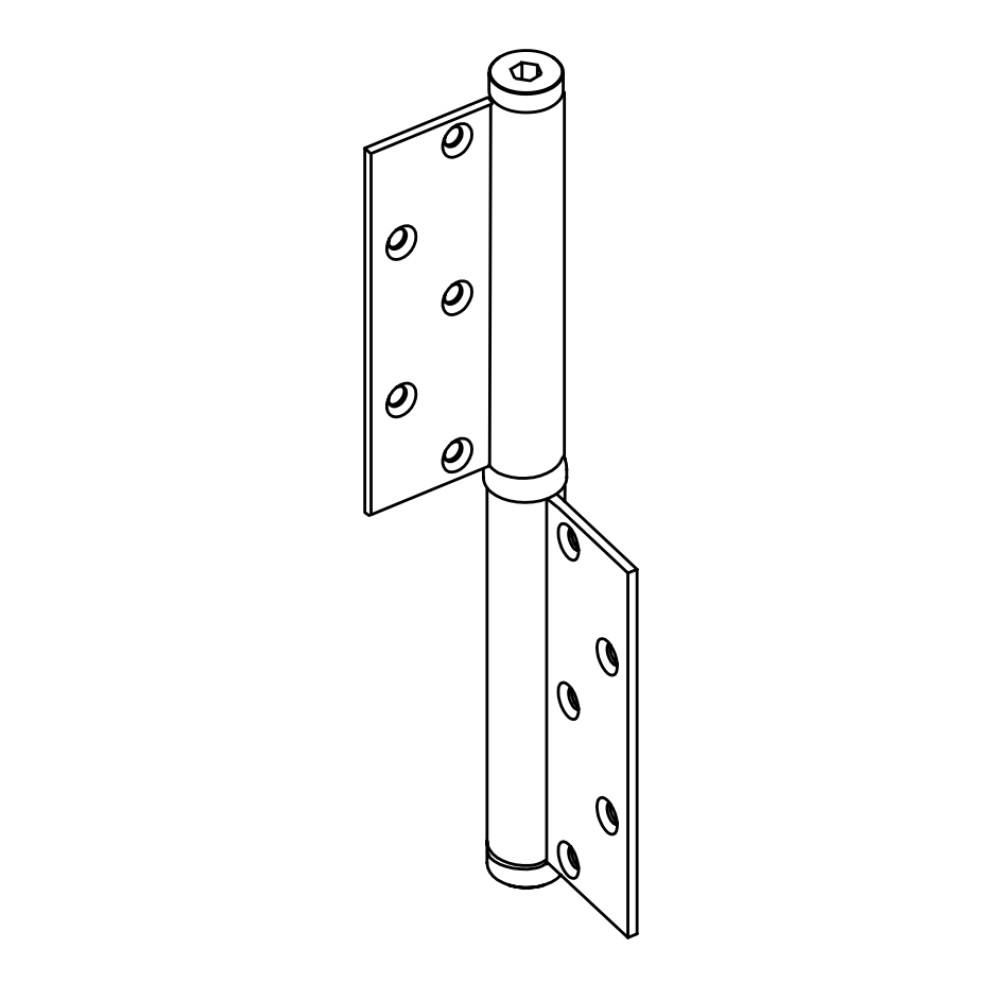

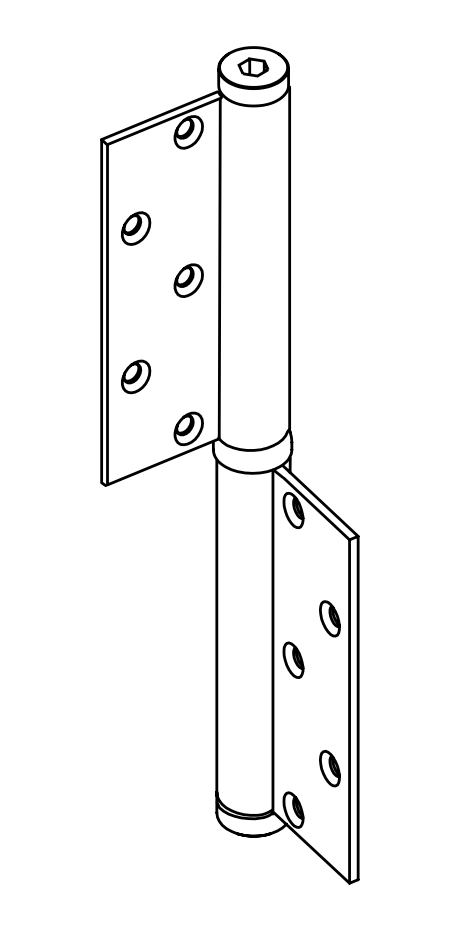

Band Pin with Bearing - Justor PPM CR - 2 Pieces - Galvanized Iron

Hinge with blades and bearing with screw fixing.

Strap pin with bearing that allows smooth opening and closing thanks to the bearing in the center of the axis.

Identical model for left and right opening. Made in galvanized iron.

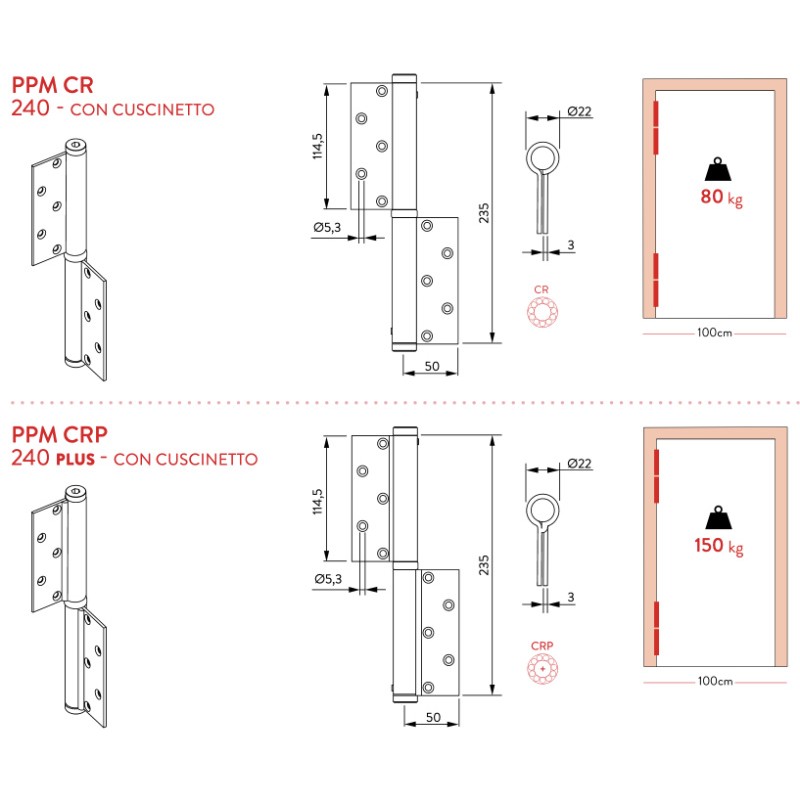

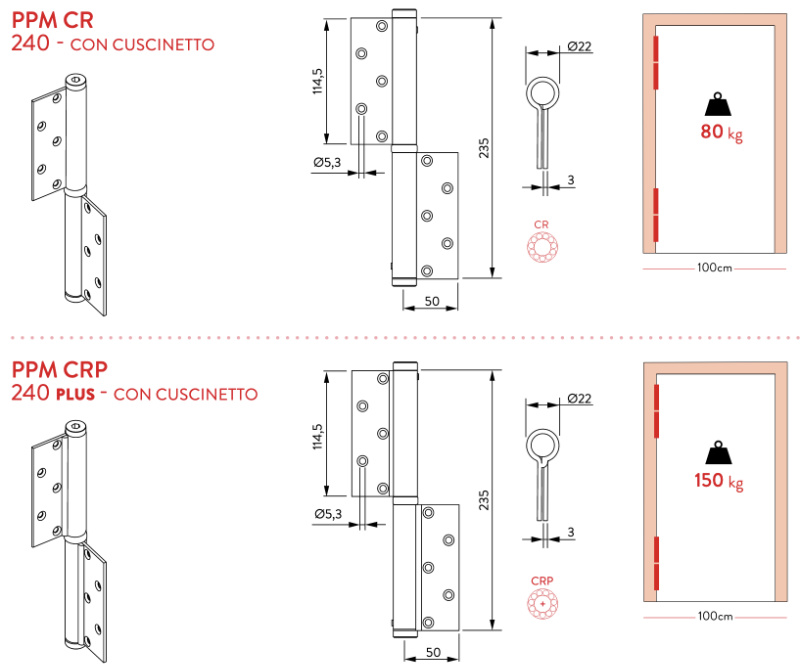

Door weight up to 80 kg (CR model) or 150 kg load (CRP model).

Perno a Bandella con Cuscinetto - Justor PPM CR

Justor PPM CR outer materials

  • Strap: galvanized steel;
  • Adjustment cap: carbon steel;
  • Washers: steel (stainless steel model CRP).

Justor PPM CR internal materials

  • Axis inside: steel;
  • Internal spring: steel plate set with protective grease.

Perno a Bandella con Cuscinetto Justor PPM CR

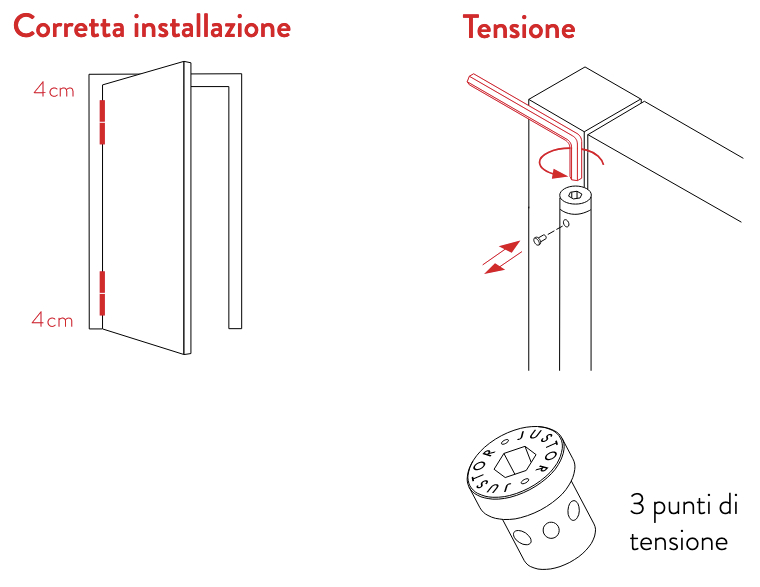

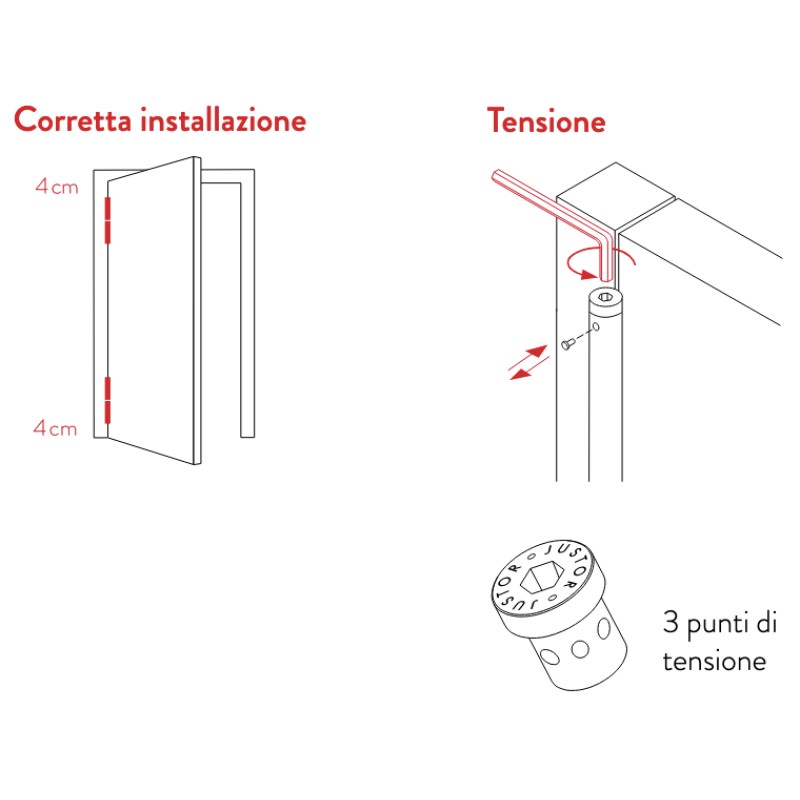

Trunnion operation with bearing

  • Application: Suitable for interior/exterior doors;
  • Automatic return: yes;
  • Power regulator: yes;
  • Maximum opening: 180º;
  • Cycles: more than 500,000.
