Benincà TOGO-WV Remote Control - 2 or 4 Channels - Frequency 433.92 MHz - Rolling Code
The

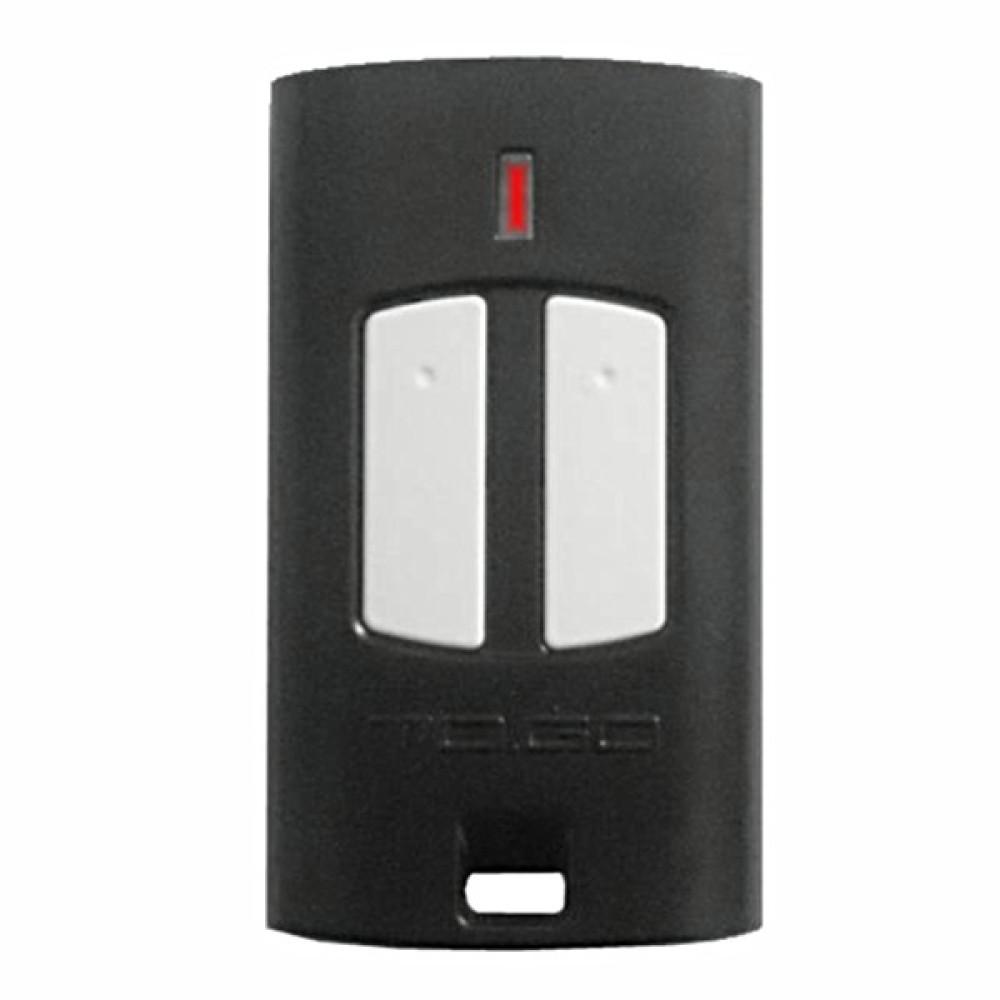

Benincà TOGO2WV remote control is a device for controlling automatic doors and gates. The remote control has
two white keys and operates at a frequency of 433.92 MHz . It uses a Rolling code HCS security coding system, which guarantees a high level of security in signal transmission.
Remote control programming can be performed in
wireless self-learning remotely , using a remote control already in use,
or manually on the radio board , by activating the CH1 programming key. The remote control is supplied with an A23 type 12 volt alkaline battery.
The part number of the remote control is BE 9863065, while the part number TO.GO2WV is also used as a reference. Other codes associated with the product are 6900961.
Care must be taken not to confuse the TOGO2WV remote control with another similar model, which has a white cover with black keys. This model is not compatible with the TOGO2WV, which instead has a black cover with white keys.
The BENINCA TO.GO.2WV remote control is a reliable and easy-to-use device, equipped with a
Rolling Code security coding which guarantees safe signal transmission.
Benincà TOGO2WV remote control technical characteristics
- BENINCA TO.GO.2WV remote control;
- Frequency 433.92Mhz;
- Rolling code coding;
- Number of keys: 2 or 4 (by choice);
- Black cover, white keys;
- Product codes: BE 9863065 - TO.GO2WV;
- Other codes: 6900961.
Benincà remote control programming manual
The
Benincà remote control programming manual provides for two procedures, one direct and one without accessing the radio card.
In the
direct procedure , you need to open the control unit and locate the radio receiver card. Press the PGM record button for one second, until the red or green LED lights up steadily. Subsequently, press the key of the new remote control to be programmed, the LED must go off and then on. Wait for the light to go out before testing the function of the new remote.
In the

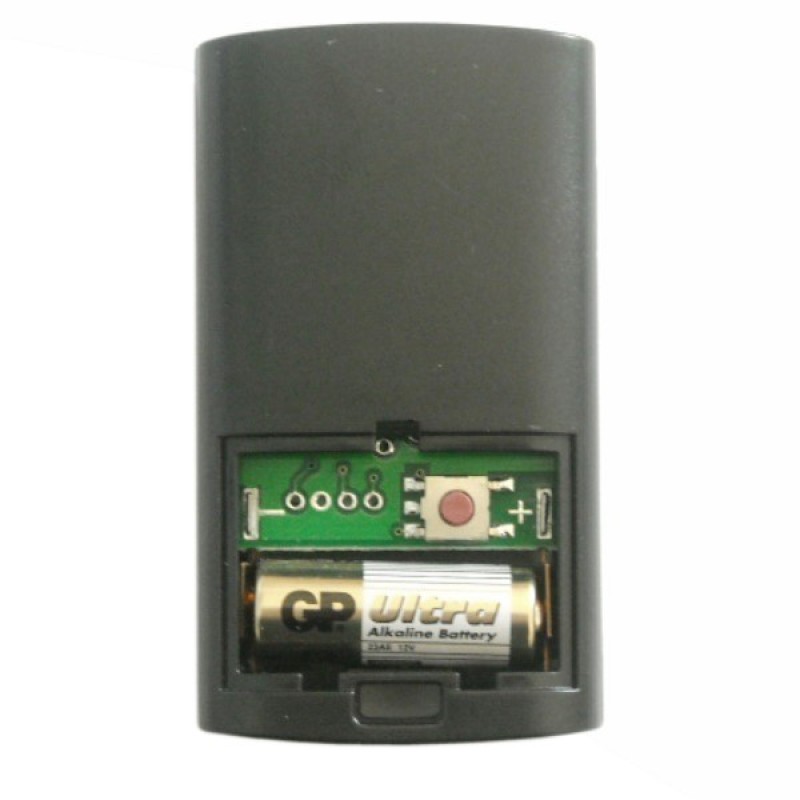

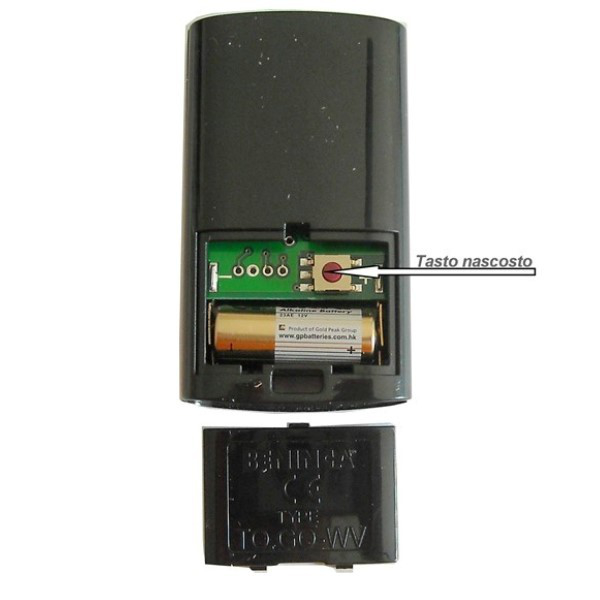

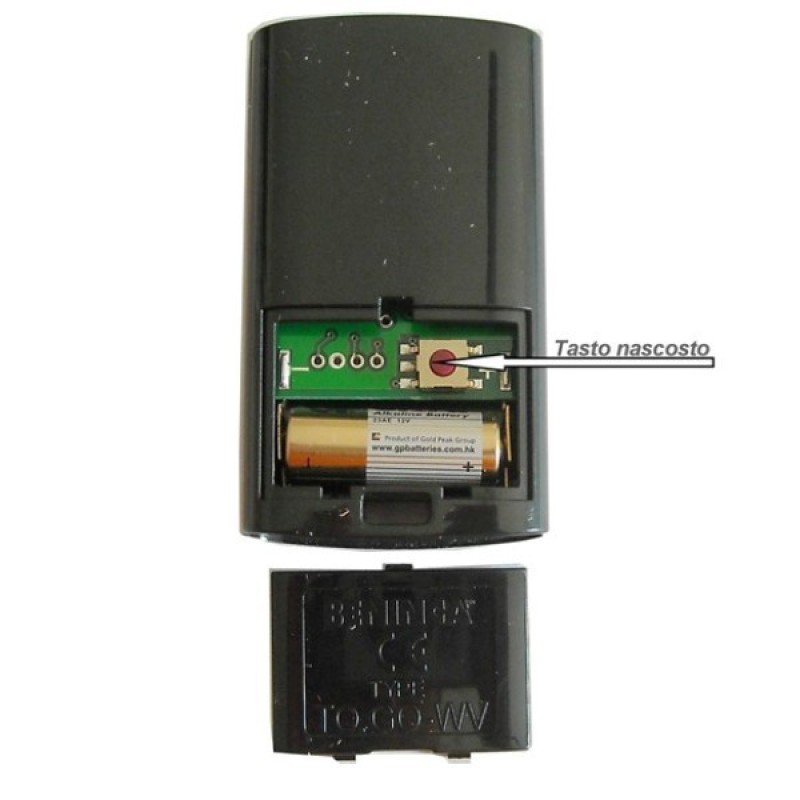

procedure without accessing the radio card , open the battery compartment door of a remote control that has already been programmed and press the internal button for 2 seconds. The led on the remote control turns on, then release the button. Then, press the button used to open the gate on the already programmed remote control for 2 seconds (the gate must not open). Finally, take the new remote control and press the corresponding key for 2 seconds (the one that must be programmed to open the gate). Wait 10 seconds to allow the card to exit programming, then check the operation of the new remote control.
The two procedures are simple to perform and allow Benincà remote controls to be programmed easily.
