Geze TS 1500; Plane closers with arm Vee Still, Force Quit 3-4 (EN1154)

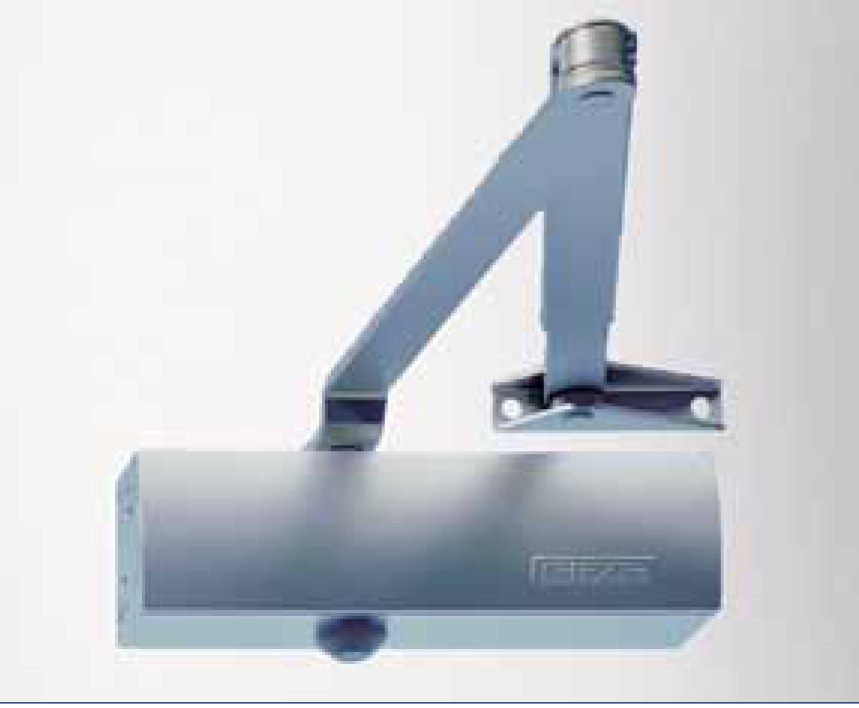

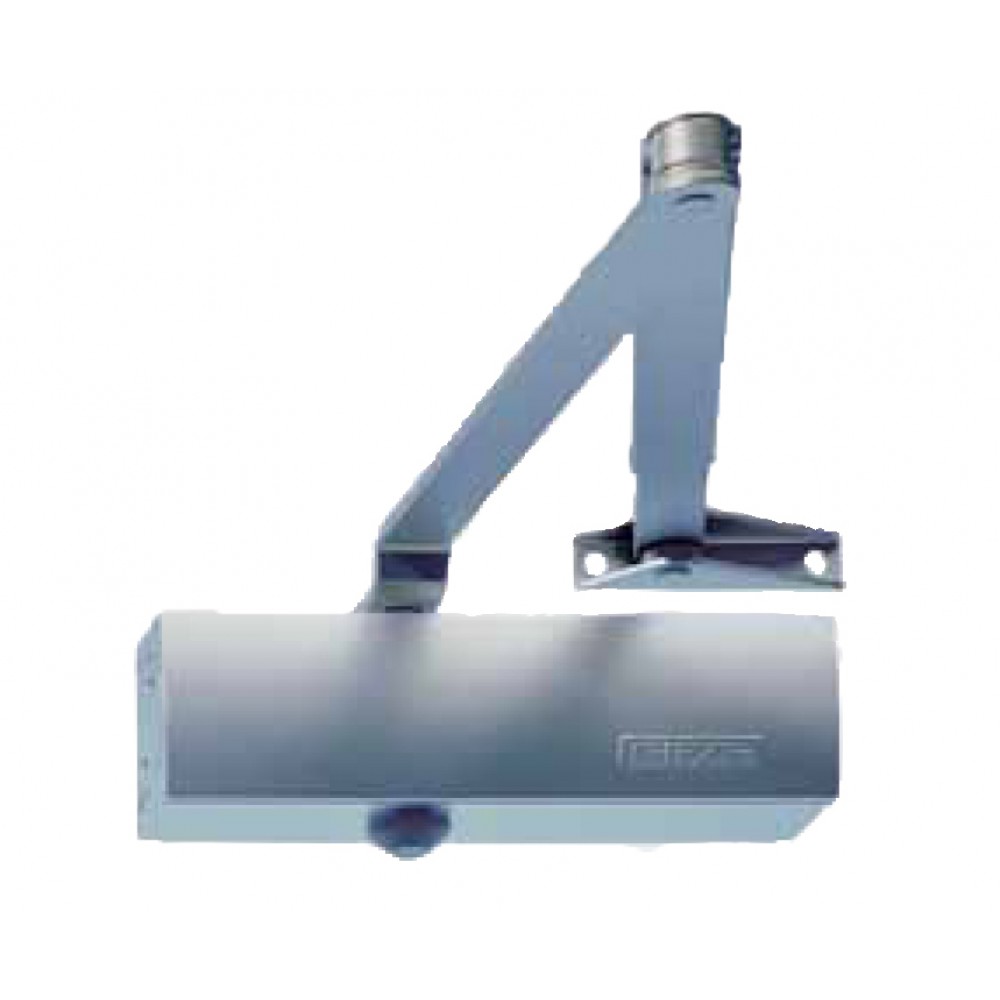

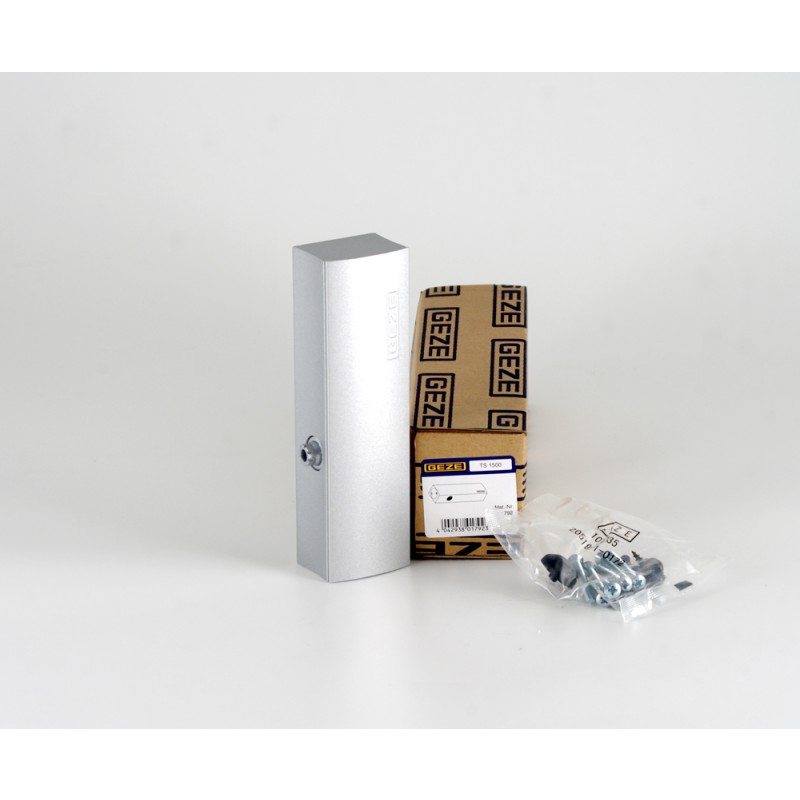

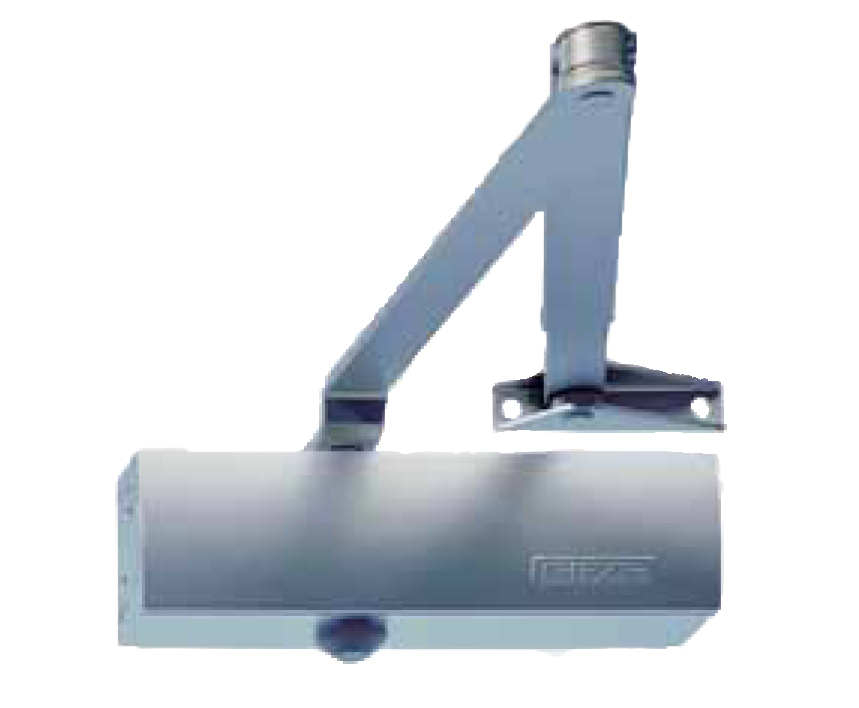

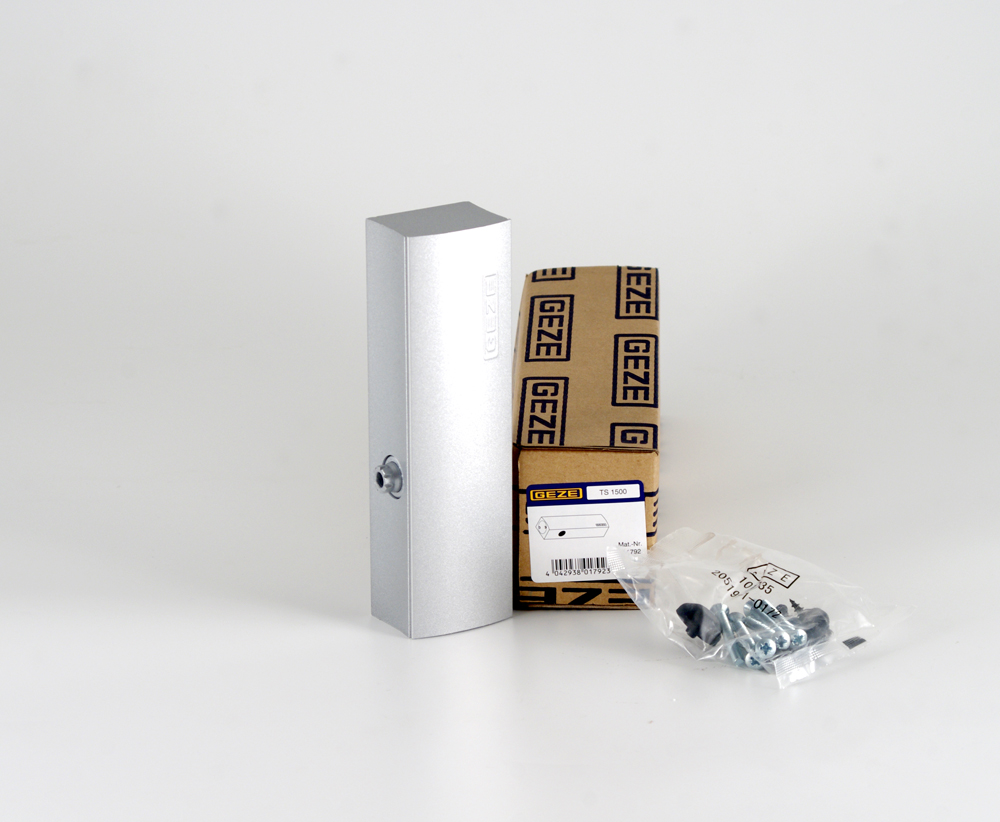

GEZE TS 1500 V with hold-arm with adjustable power, complete with hardware and installation template (mounting plate not included).
TECHNICAL DESCRIPTION:

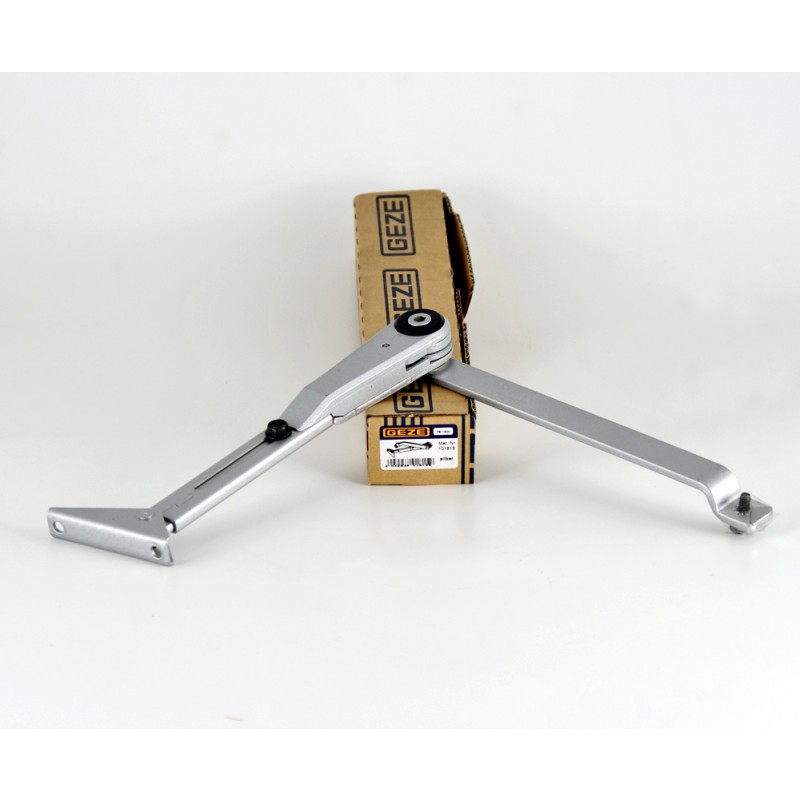

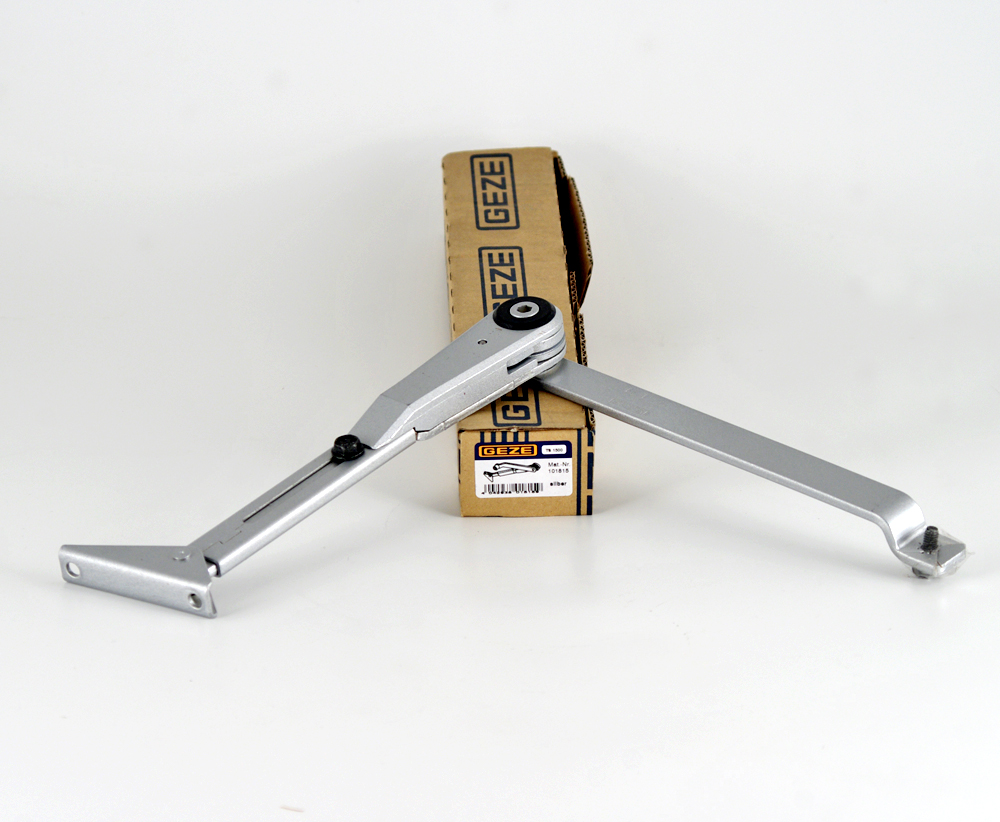

Adjustable closing force in two sizes achieved by simply reversing the jumper arm:
- Closing force "reduced" (force 3 seconds EN1154) for leaf widths up to 950mm;
- Closing force "great" (force 4 seconds EN1154) for leaf widths up to 1100mm.
Closing speed and hydraulic latching adjustable;
- Adjustable between 70 ° and 150 °.
FIELD OF USE:
For single leaf door, with widths up to 1100mm;
For doors with opening on the right and left without any modification;
Possibility of traditional assembly, on the wing, or the reverse.
GENERAL INFORMATION ON AIR GEZE DOOR CLOSER WITH ARM (taken from the catalog Geze):
