Pasini WIZ 90 Aluminum Sunscreen with Rope

Brands: Pasini SpA

Code: WIZ 90

starting from € 327,05

Prices excluding VAT

How to take the measures of the shutters?

Replacement of an existing roller shutter: you can take the measurement of the old roller shutter.
For new installations, according to the guides, the necessary tolerances must be taken.

What is included in the shutters?
Roll-up cloth, terminal (the last stick) and caps.

What are the delivery times?

Being made to measure, products cannot be ready immediately.
You will wait about 5 - 10 working days.

Right of withdrawal not applicable (art. 59 Consumer Code).

Aluminum solar shading with cord movement Pasini WIZ 90 - 94 mm slat

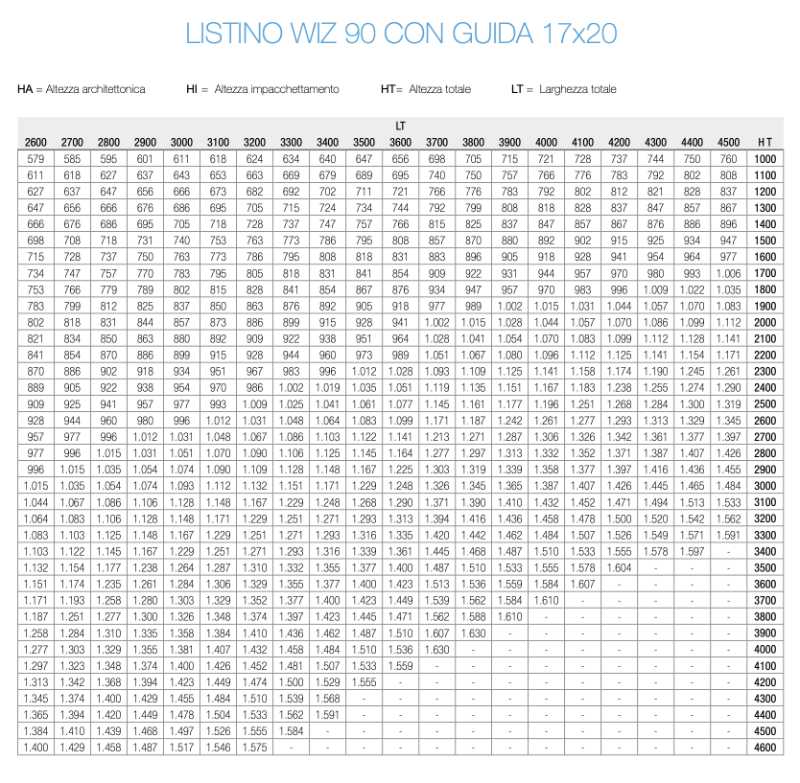

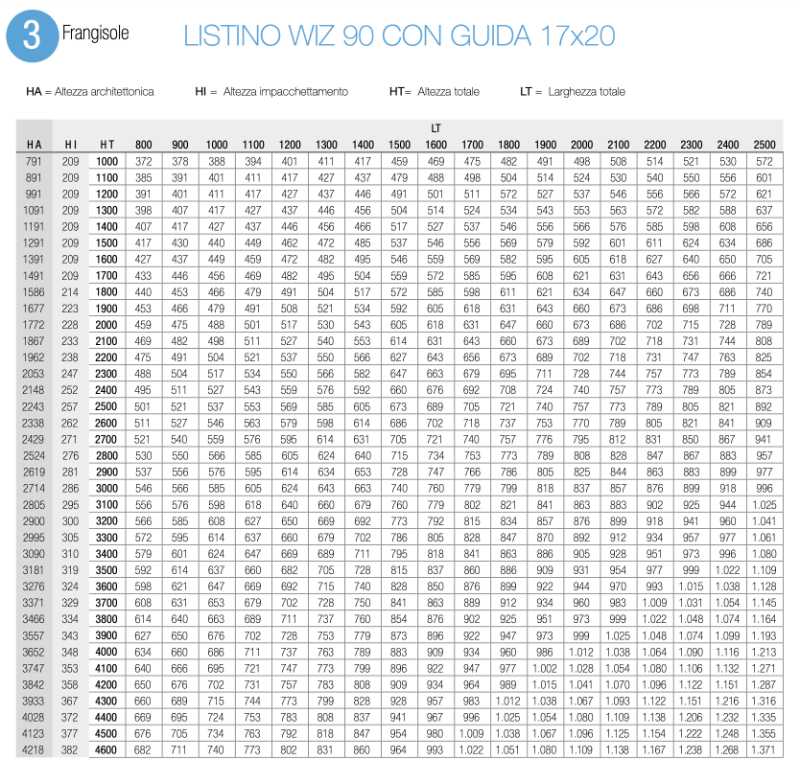

WIZ 90 solar shading with 17x20 guide

Weight: 1.9 kg / m2;
Lamella size: 94 mm;
Lamella thickness: 0.45mm;
Cassonetto: 79x68mm;
V-AC motor: 230/50 Hz;
Max power: 150W

Pasini WIZ 90 aluminum rope sunshade

Adjustable and packable sunscreen with Z-shaped slats.
94 mm profiled slat ;
Personalized adjustment of the light up to an optimal darkening;
Excellent solar shielding and against atmospheric aggression;
Contributes to energy saving;
With closed slats it forms a ventilated wall.

COLORS AND FINISHES
Structural scratch-resistant 30 gloss matt varnish. Smooth semi-gloss slats.

LIGHT CONTROL
The slats are normally positioned at an angle for optimum protection from the sun and privacy. With horizontal louvers maximum light, with completely closed louvers, good level of darkening.

MOTORIZATION
The motor allows the adjustment of the slats in complete relaxation and comfort.

VARIETY OF COLORS
We have a standard color collection on request we can supply a complete RAL range.

MATERIAL QUALITY
Step terylene, fixed to the slats by steel staples, lifting texband treated for outdoor against atmospheric aggression, orientation terylene covered in kevlar.

SIDE GUIDES
In extruded aluminum complete with anti-noise gasket. 3 mm diameter stainless steel braided cable guides, equipped with cable tensioner, coated.

Frangisole in alluminio con movimento a corde Pasini WIZ 90 - Lamella 94 mm

Characteristics Sunshades WIZ 90 Pasini

OPTIONAL - SELF-SUPPORTING GUIDES
The self-supporting guides avoid the upper fixing of the box supports on the external insulation, avoiding the thermal bridge.
Maximum width LT 4500 mm (over 2500 insertion of support).

REED GUIDE PINS
Sliding pins in guide in zamak treated against UV rays.
The pins are mounted alternately on the right and left for maximum flexibility of the fabric in case of wind.

TEXBAND PASS HOLE
The 7mm diameter hole with hemmed finish protects the texband during the ascent and descent of the slats from any interference or abrasions that could damage it. The size of the texband of 6 x 0.33 mm almost completely covers the hole avoiding the entry of direct light.

GUIDE IN STAINLESS CABLE
Stainless steel cable guide Ø 3 with braid covered in plastic material, resistant to UV rays.

STAINLESS STEEL CLIPS
The stainless steel staples guarantee inalterability over time and correct folding of the terylene ladder, furthermore it facilitates the replacement of the terylene ladder during maintenance thanks to the special conformation that allows it.

CABLE TENSIONER FOR GUIDE
Chrome-plated brass cable tensioner composed of two parts: one fixed to the floor, the other mobile.

Technical information made to measure rope blinds

Lamella thickness 0.45 mm;
Noise / darkening seal inserted on the external rib;
Nylon pins mounted alternately for maximum flexibility of the fabric in case of wind;
Side guides in extruded aluminum 17x20 mm painted in the Ral range (our collection), with anti-noise gasket;
Telescopic terminal in extruded aluminum;
6 mm wide anti-wear texband tapes, treated against UV rays for the ascent and descent of the sheet;
Constant pitch terylene ladder in polyester fabric treated against UV rays;
Galvanized steel box carries up, down and orientation mechanisms;
Grooved extruded aluminum connection shaft diam. 14 mm;
Wiz sunshades with ropes movement are available with manual movement or with a winch.

Aluminum sunshade color: you decide which RAL color

Pasini sunshades are offered online in a wide range of RAL colors .

You can choose the color of the profiled louvres and the finish of the colors of the guides.

The colors of the slats and guides may differ as they are made with different technologies. The slats have a smooth semi-gloss finish.

The Pasini aluminum sun screens Made in Italy

Pasini outdoor sunscreens are strictly produced in Italy .

The Pasini company was founded as a company specialized in the production of roller shutters. Over time, it has added more elaborate solutions to the original line, such as adjustable roller shutters, armored roller shutters and aluminum sun screens.

Gli avvolgili Pasini sono prodotti al 100% in Italia

D. dovrei fare 2 frangisole nella misura 1170x2500 altezza totae max ingombro e devono essere motrizzate con telecomando mi fate un preventivo ccompreso trasporto tempi di consegna colore ral7016 completi di motore e guide saluti Giuseppe Furno'

R. Ciao Giuseppe, per avere un prezzo di massima ci sono le tabelle che trovi nella scheda. Le tabelle non sono un prezzo frangisole in alluminio definitivo. Per quello devi chiederci un preventivo. Per poter calcolare il preventivo frangisole in alluminio con corda dobbiamo sapere queste misure in millimetri: HA = Altezza Architettonica; HI = Altezza Impacchettamento; HT= Altezza Totale; LT = Larghezza Totale. In più ci dovrai comunicare quali colori RAL desideri per le lamelle profilate e le guide. Cordiali saluti Windowo
