BTicino 364232 Audio Kit with Intercom and Keypad

BTicino 364232 Single-Family Audio Kit with Intercom and Pushbutton Panel

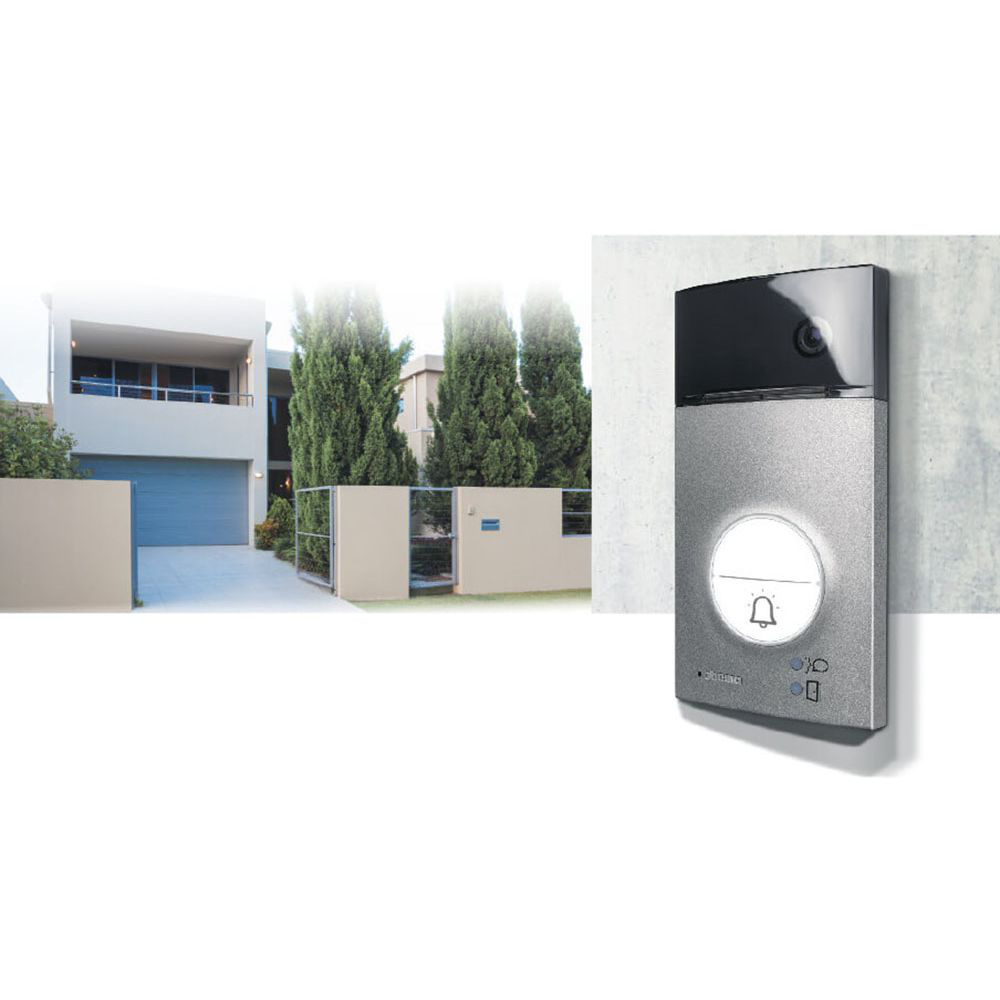

• External push-button panel Linea 3000 with zama front;
• Internal Class 100A16E station with touch controls.

Features of the BTicino 364232 single-family audio hands-free kit

• Simple 2-wire installation (audio 2 wires);
• Also configurable for two-family systems;
• White LED lighting on the name tag;
• IP54 protection rating and IK10 robustness for outdoor use;
• Up to 1000m distance with appropriate cable;
• Professional studio function included in the internal intercom.

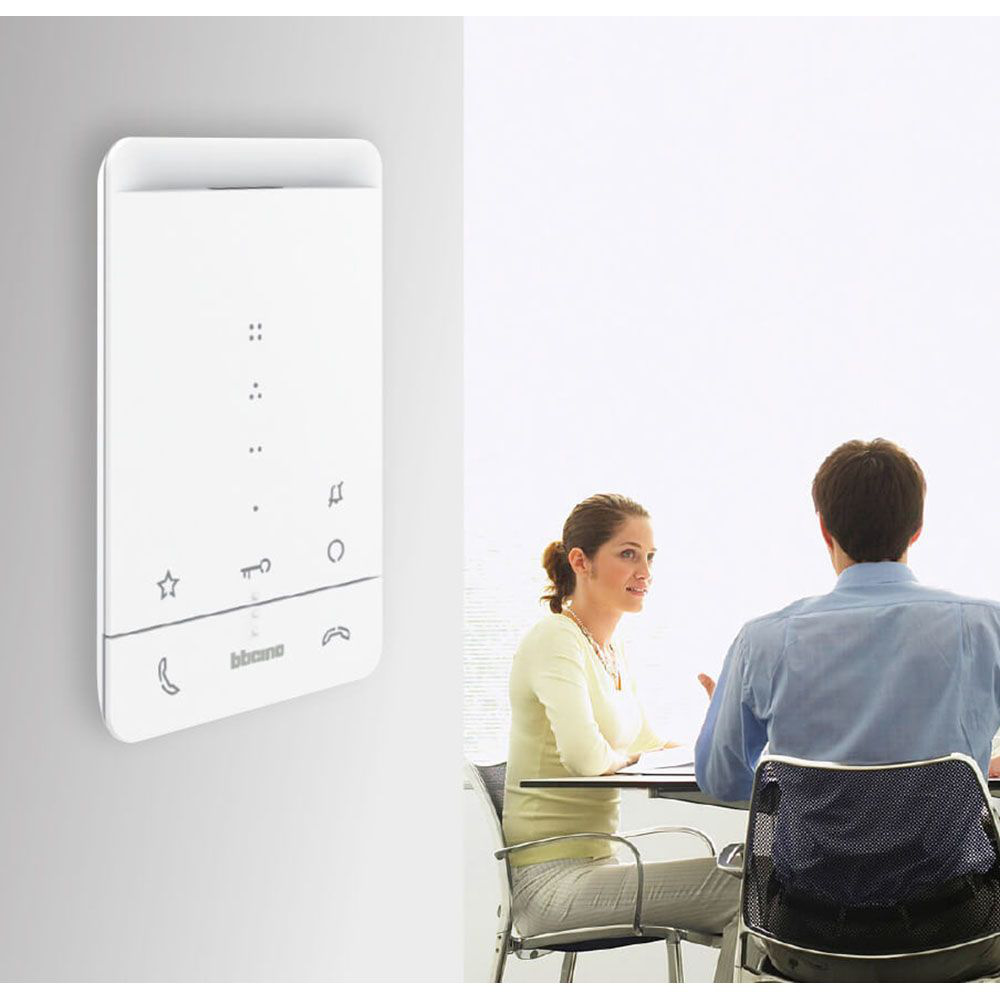

Internal Class 100A16E

• 2 physical buttons: answer and end call;
• 3 touch buttons: door opener, stair lights, external unit activation;
• 4 configurable touch buttons (e.g. intercom, second lock...);
• Volume control with the option of muting the ringtone;
• Wall or table installation (optional accessory art. 344692);
• Tactile guides for the blind and LED signals.

Installation kit BTicino 364232

• Wall or built-in (requires art. 350020 + 343061 – optional);
• Rain roof accessory available (art. 343051);
• Connectable to existing 2-wire systems without modifications.

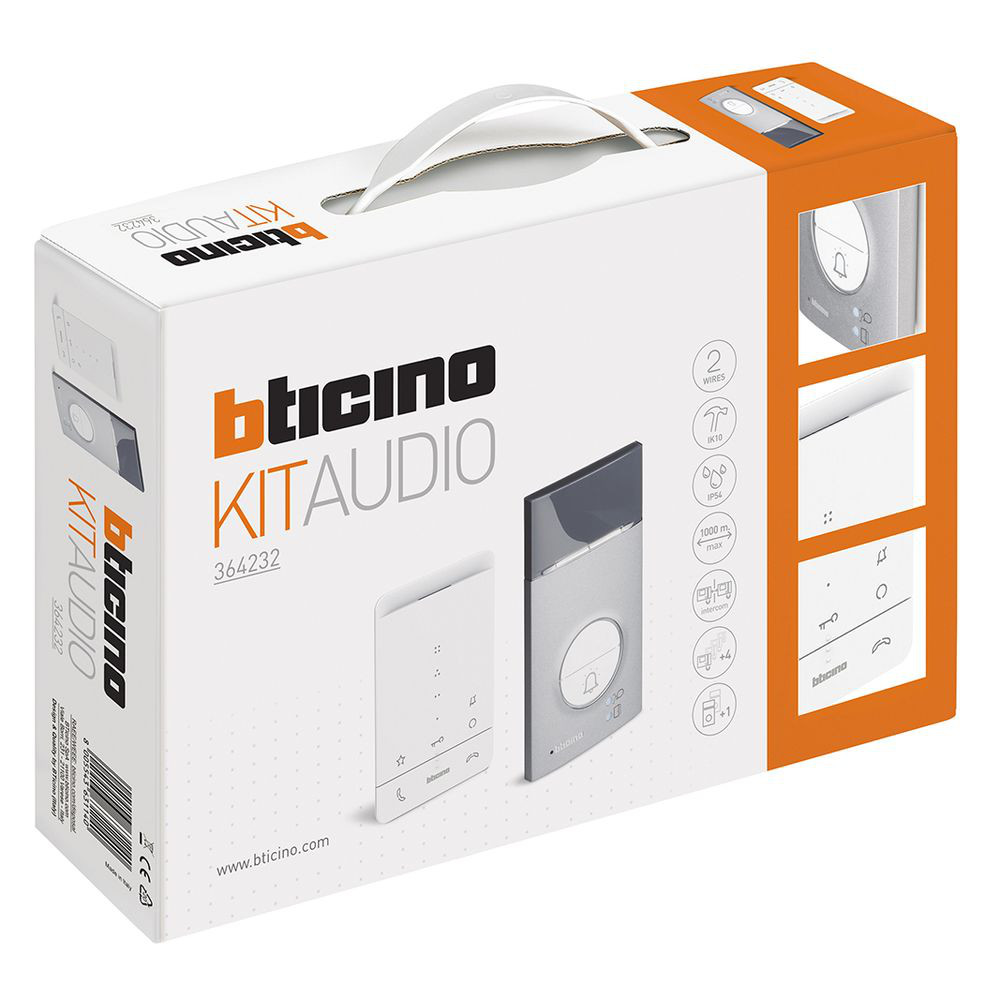

Contents of the BTicino 364232 audio kit

• 1 Class 100A16E internal station;
• 1 external post Linea 3000;
• Power supply included;
• Installation manual.

Technical specifications BTicino 364232

• Product Code: 364232;
• Brand: BTicino;
• System type: 2-wire audio;
• Calls: 1;
• Wi-Fi: No;
• Teleloop: Yes;
• Recommended installation height: 160–165 cm;
• Degree of protection: IP54;
• Ruggedness: IK10;
• Series: Villa Kit.

• 364232 BTicino Audio Kit Manual (9,06 MB)
