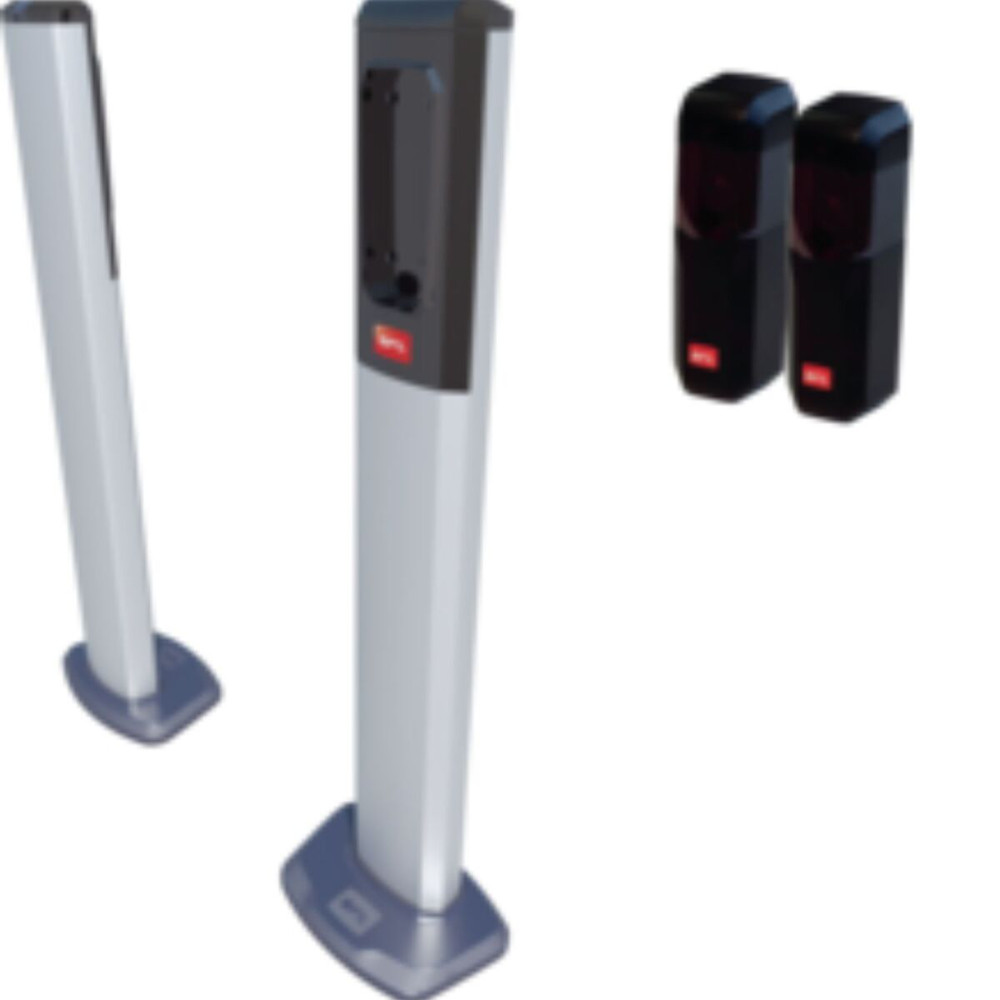

The BFT KIT COMPACTA PHP consists of a pair of 522 mm aluminum posts and a pair of COMPACTA series adjustable photocells . It is designed for professional installations on automatic gates that require a reliable, versatile security system compatible with a wide range of control units.

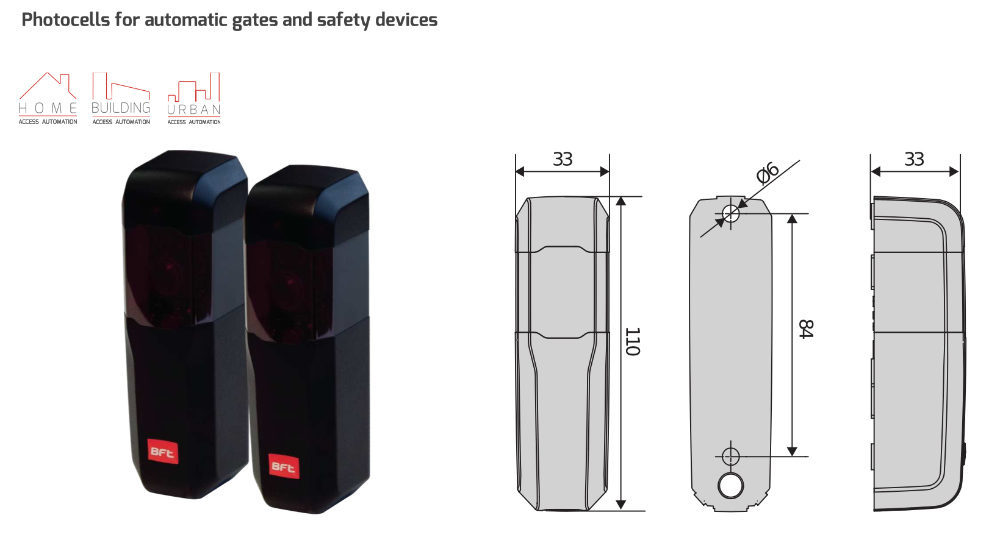

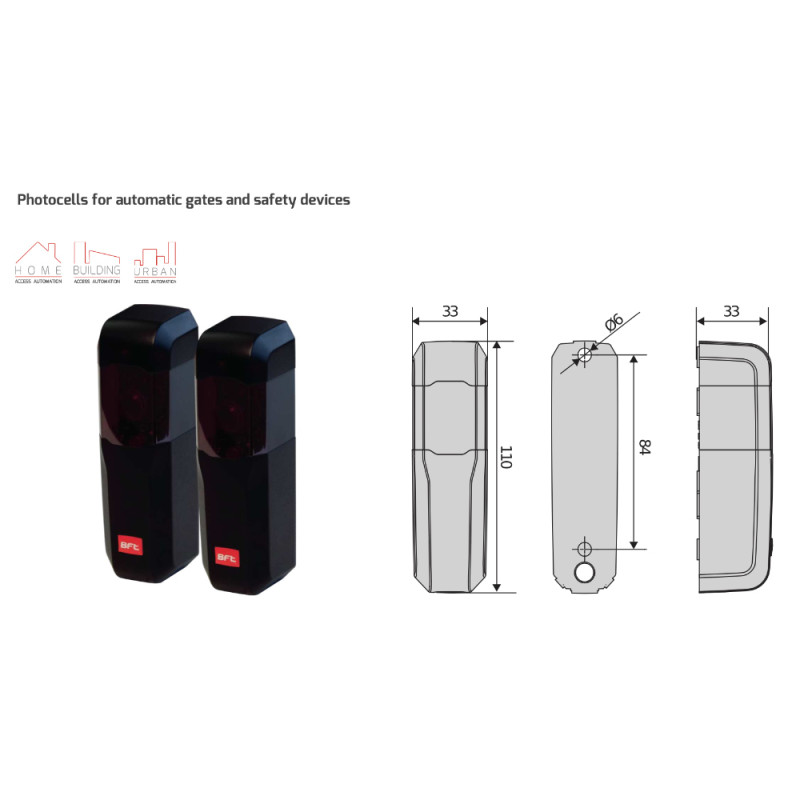

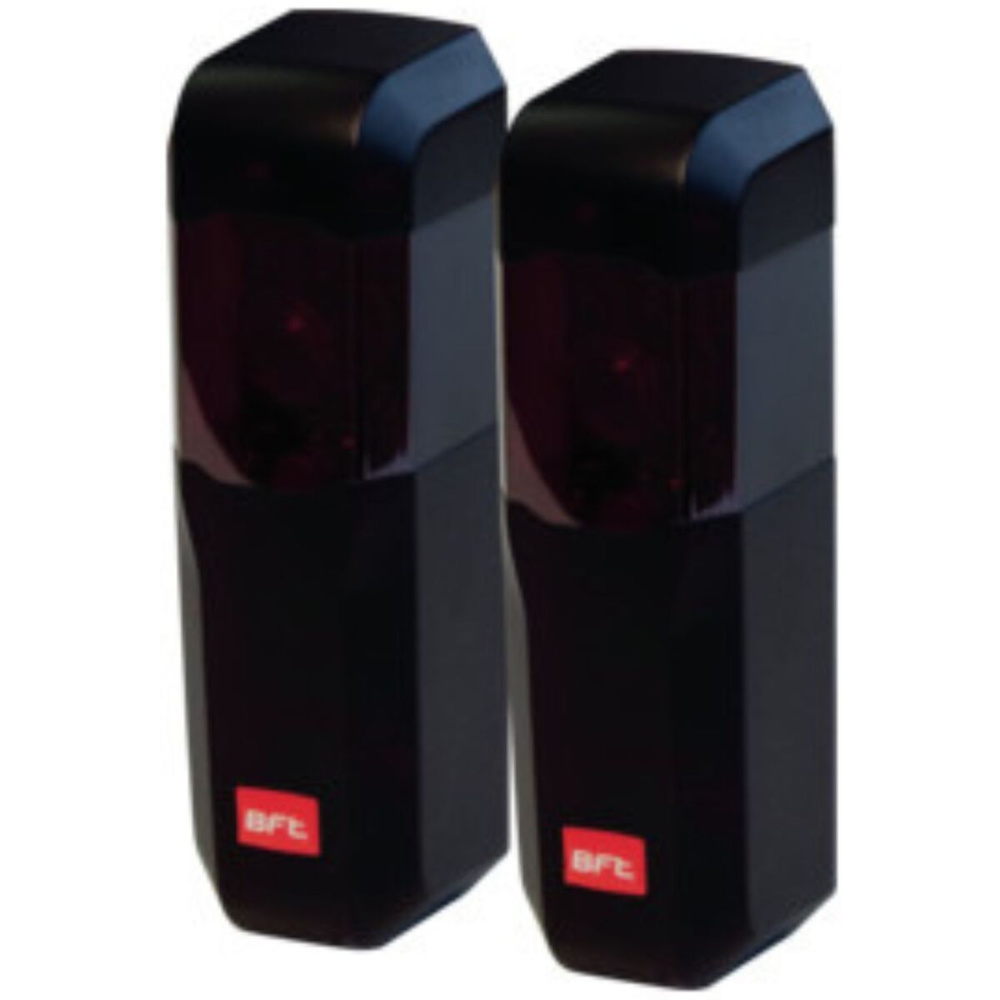

COMPACTA photocells are designed to ensure maximum integration even in small spaces , thanks to a compact and modern design. The kit includes two sturdy aluminum columns that allow installation in any area where it is not possible to fix the photocells to the wall.
The photocells can be oriented up to 180° horizontally (90° to the right and 90° to the left), greatly simplifying installation even when the two columns or walls are not perfectly aligned. Vertically, the photocell compensates for misalignments of up to ±5°, allowing for quicker and more forgiving installation.
The wide power supply compatibility (12–33 Vac and 15–35 Vdc) allows the kit to be used in almost all automatic gate installations. The photocells can be used with all BFT control units that support verified safety management.
Once the lens is oriented, the cover attaches with a simple click, speeding up the closing of the job and ensuring a clean installation.
The COMPACTA photocells are also available separately on Windowo, without the posts.
