Mosquito Net Bettio Flip 1 for Blinds with External Guides Fixed
Warning: The price refers to the purchase of a single mosquito.
They make estimates targeted for higher quantity (contact us).

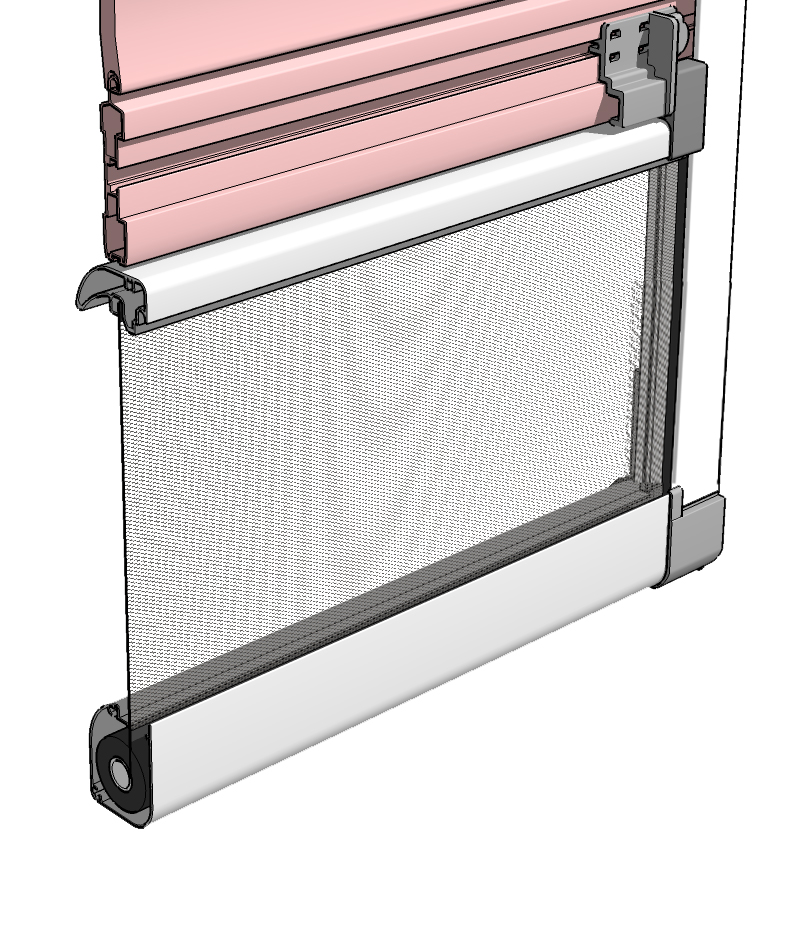

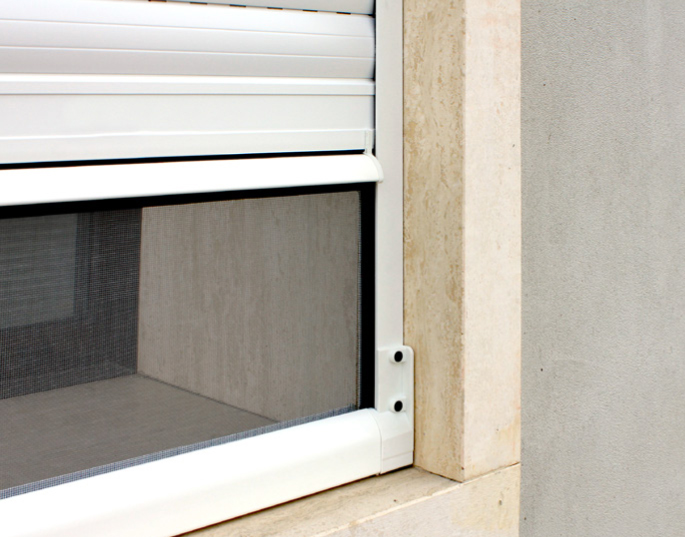

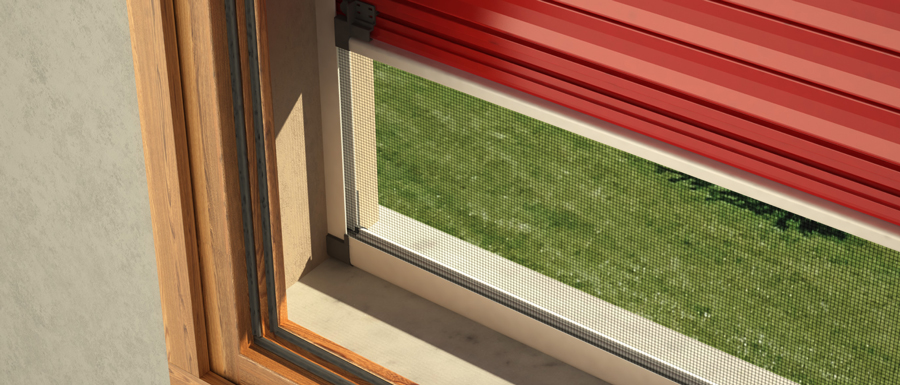

Flip the mosquito net 1 is designed to be installed for roller shutters with fixed outer guides. The perfect combination of mosquito nets and shutters.
Flip is a revolutionary mosquito net that is installed on the outside of the shutter guides or on the device to protrude. This ingenious solution is made possible thanks to the box on the floor and leaning against the bar
handle attached to the roller shutter by means of a special hook mobile terminal which allows its release at will. In this way the mosquito net moves synchronously with the shutter without further maneuvers by the user.
The special mobile hook slides along the shutter terminal and allows you to hook the handle bar fecendola mosquito net, so, move in sync.
Discover the other two versions of Flip Bettio, on sale on Windowo.
Flip 1 with External Guides Fixed is the mosquito net specially designed to be installed with the following system:
Technical features:
- Model: Flip 1 with Guide External Fixed;

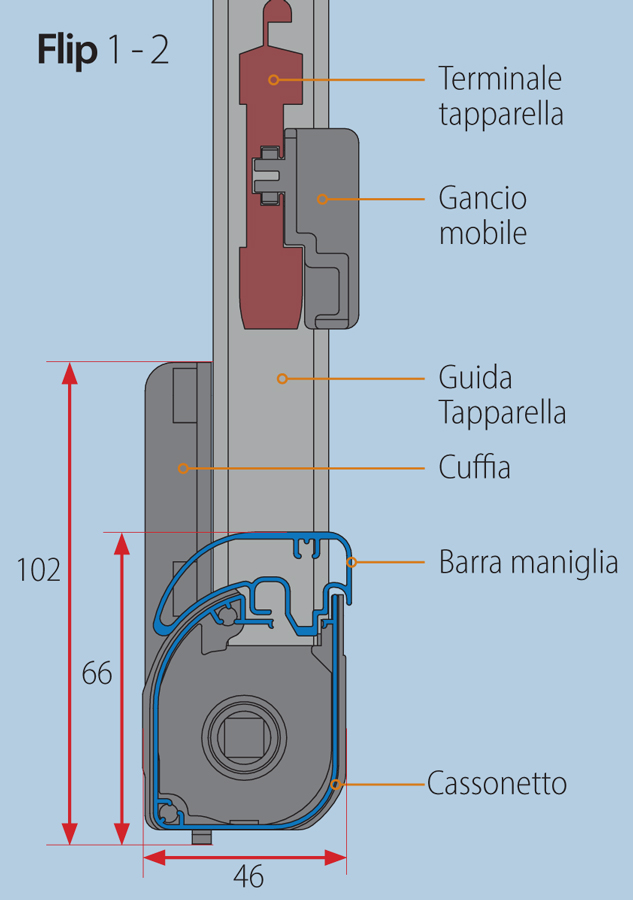

- Overall dimensions: 39mm;
- Minimum hole sizes: 500 x 500 mm.
- Maximum hole sizes: 1600 x 1700 mm *.
- Recommended application: shutter;
- Coloring aluminum: a choice between silver (painted silver), bronze (light oxidized bronze), White (gloss white Ral 9010), Ivory (bright ivory Ral 1013), green (matt green Ral 6005). We shall also be made estimates on demand for other colors.
- Accessories Colour: black accessories. The color Ral 9010 provides some matching accessories. The color of the accessories in the special colors is at the discretion of the Bettio.
* Considering a footprint of min.4 cm of the shutter open. For basic measurements less than 552mm contact the company to verify the maximum height achievable.
CAUTION
Detect COMPARTMENT measures (BAR / LIGHT): the product made will have a basic measure decreased by about 3 mm.
Flip 1: with GUIDE EXTERNAL FIXED

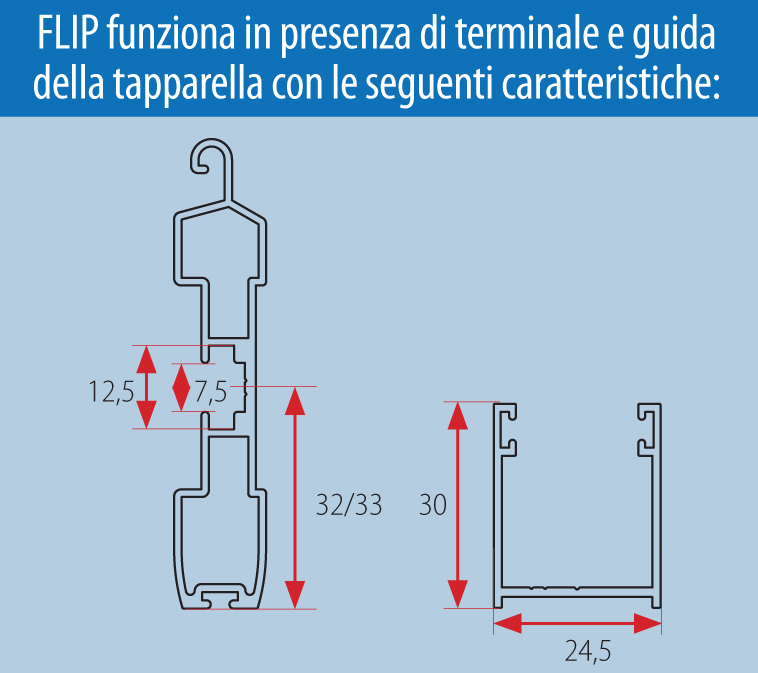

Flip 1 can be installed replacing the guides of the shutter with 30x24,5mm guides or intervening on existing ones, provided they are 30x24,5mm (see technical drawing), which will have to be shortened and drilled using the template provided on the installation manual. The user may at any time remove the insect screen: the operation of the shutter is ensured by special plastic extension (to be ordered separately). Do not release the mosquito net from the end of the shutter if it is raised.
