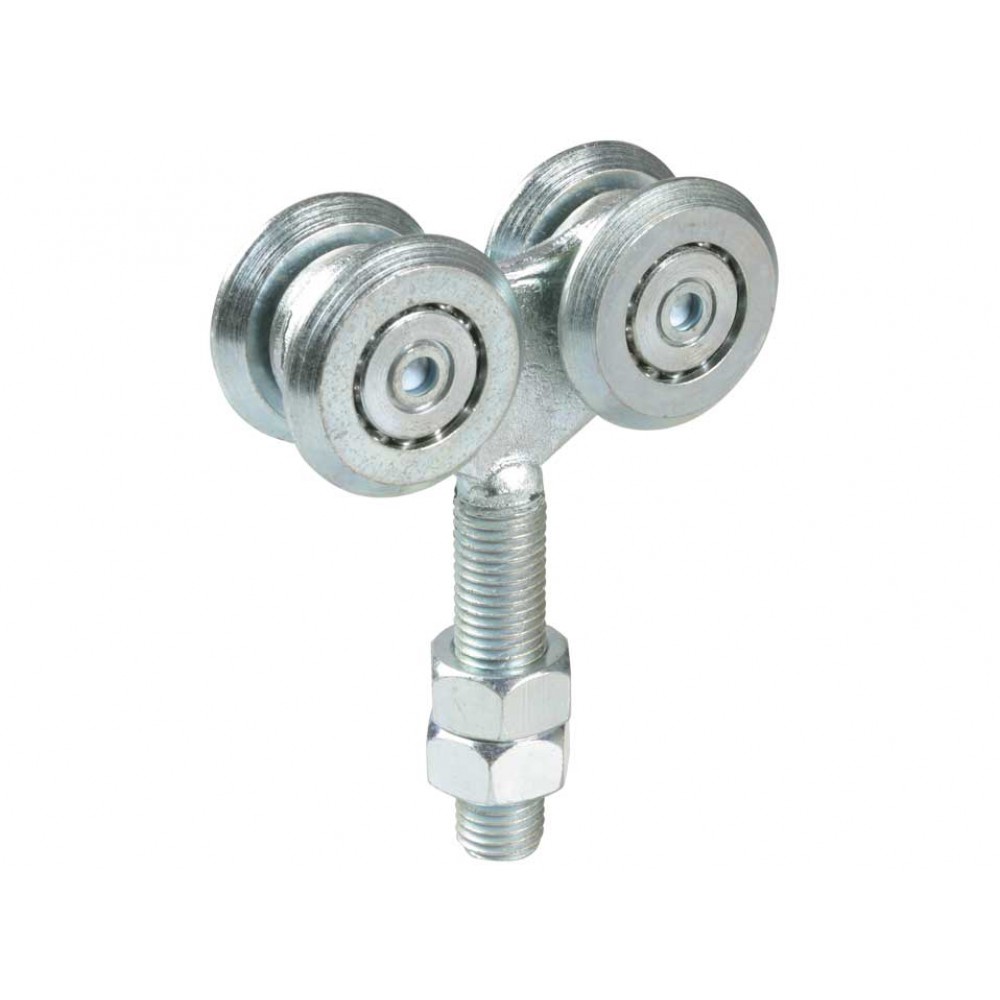

Trolley for Sliding Doors - Fixed Model with 4 Steel Bearings - IBFM
Fixed carriage with 4 bearings for sliding doors. Various sizes available.

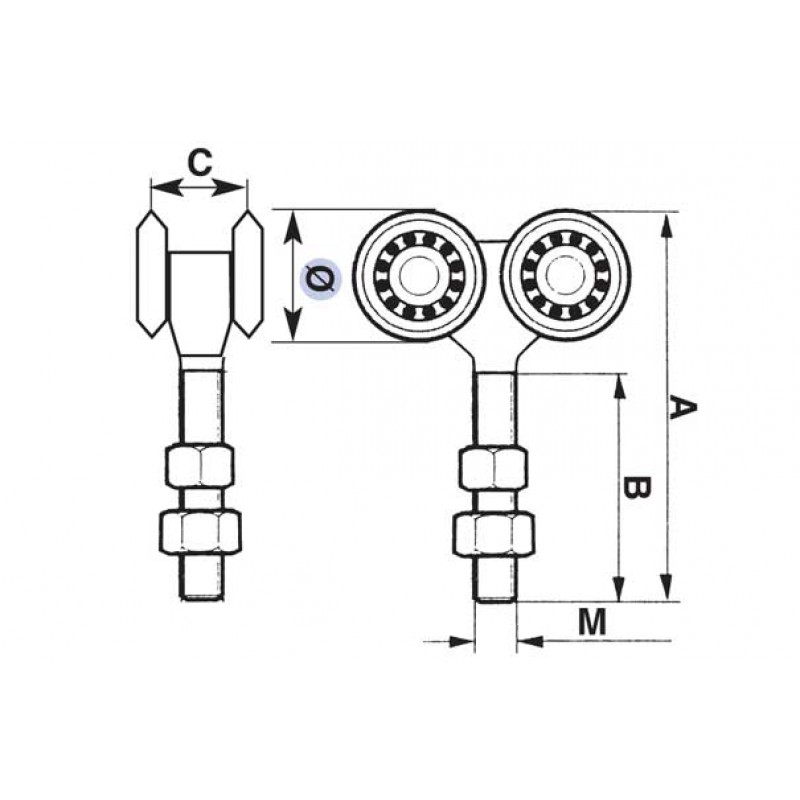

| Dimension |
Small |
Average |
Great |
| diameter mm |
24 |
42 |
54 |
| A mm |
62 |
115 |
158 |
| Bmm |
35 |
60 |
85 |
| C mm |
20 |
23 |
31 |
| m |
8 |
12 |
20 |
| Capacity 2 Pcs* Kg |
60 |
450 |
750 |
| Art. |
331024 |
331044 |
331054 |
| To be used with guide Art. |
339/P |
339/M |
339/G |
| To be used with plate Art. |
327 |
336/12 |
336/20 |
Capacity 2 Pcs*: the capacity is intended for pairs of trolleys, distance between the supports 700mm.
The guides and plates can be purchased separately on Windowo.
Accessories for sliding doors produced in Italy by IBFM
Founded in 1947 as an artisan company in the city of Monza, IBFM has been present on the market of small parts and hardware items in general for more than 60 years, presenting itself today as one of the major manufacturers in the field of gate accessories.
