Dual Push Points Chain Actuator C240 24V Topp Max Stroke 36cm

Topp
Brands: Topp
Code: C240 24V
-15%
€ 295,99 € 348,22
Prices excluding VAT
Are you looking for an actuator from the Topp catalog that is not on our site? Contact us and ask for a quote.

- +

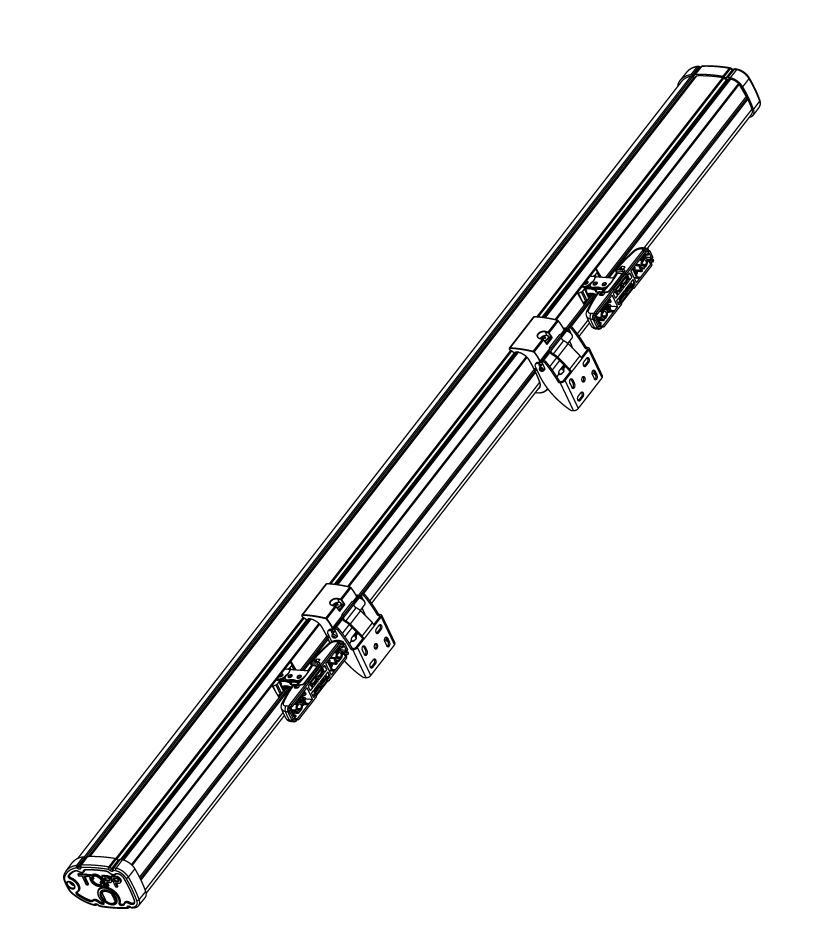

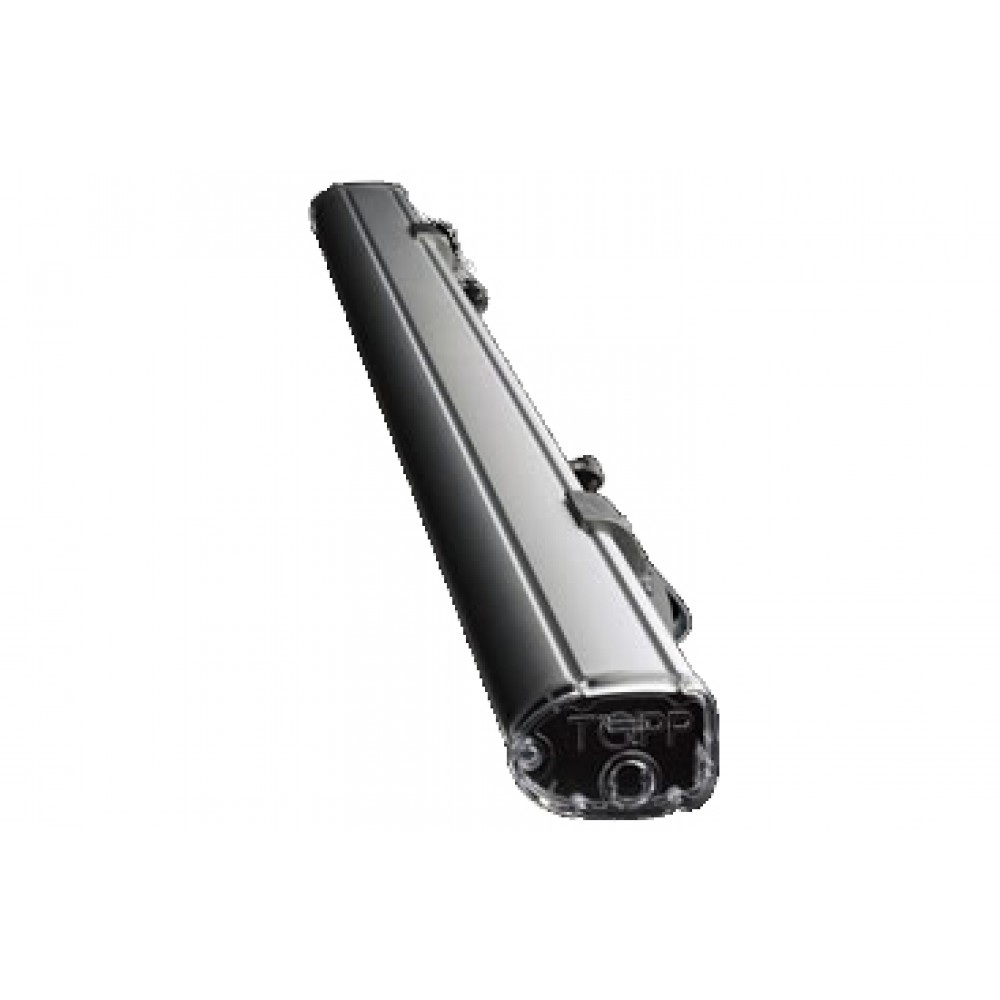

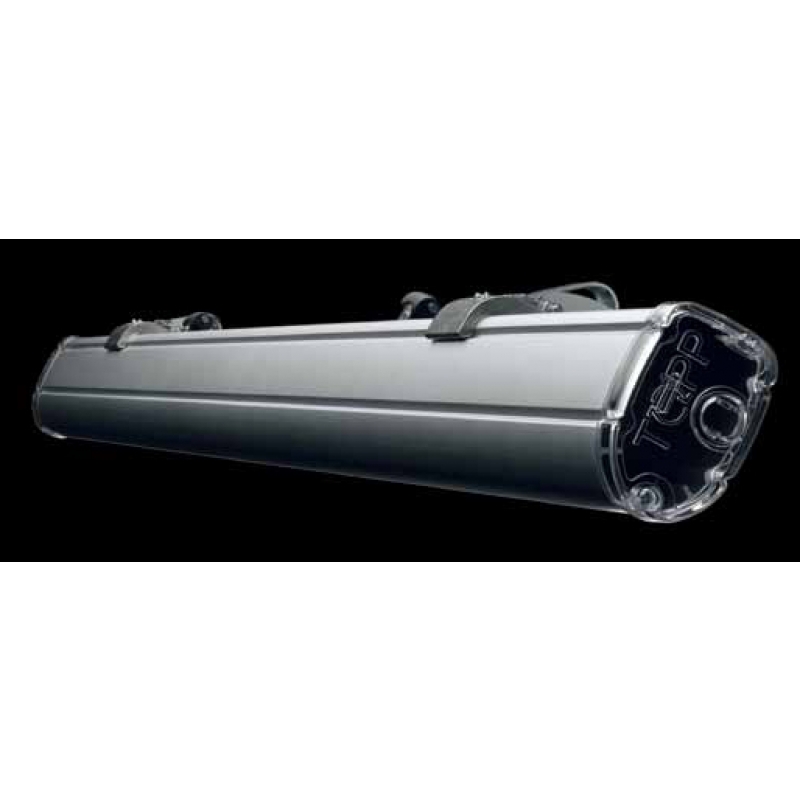

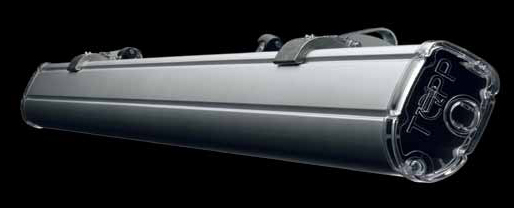

Dual Push Points Chain Actuator C240 24V Topp Max Stroke 36cm

Electric actuator Topp model C240 with 2 double-link chains, in an elegant die-cast aluminium profile, with custom-made length from 100cm to 400cm,
complete with brackets and accessories for top and bottom hung windows


Operation at 24V.
Max thrust force 400N.
Fast hooking and unhooking system to the window frame.
Max stroke 36cm.
CE marked.

Technical characteristics:
  • Power supply voltage 24V;
  • Max recommended load in thrust: 400N;
  • Max recommended load in traction: 300N;
  • Stroke up to: 360mm;
  • Absorbed current: 0,75A;
  • Idle translation speed: 7,5mm/sec;
  • Duration of the idle stroke: 48sec;
  • Service type: S2 of 4min;
  • Operating temperature: - 5° + 50°C;
  • Protection degree of electric devices: IP30;
  • Stroke end regulation in closure: not necessary;
  • Connection of two or more actuators in parallel: yes;
  • Stroke end: electronic in opening, by amperometric absorption in closing.


Applications: bottom and top hung windows, domes, skylights.

Topp Actuator

What is included?
Dual push points chain actuator, frontal brackets set for top hung windows (2 pcs), clamps set for top hung brackets (2 pcs), ARS fast hooking device to the frame.

Why choose C240 Topp?
  1. Custom-made profile length according to the window width.
  2. Swivel fitting bracket adjustable in any position along the profile.
  3. Motor supplied with cable.
  4. Fast hooking and unhooking system to the window (international patent).
  5. Innovative design.

C240 24V Topp
