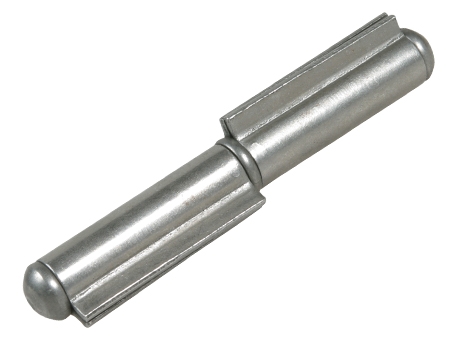

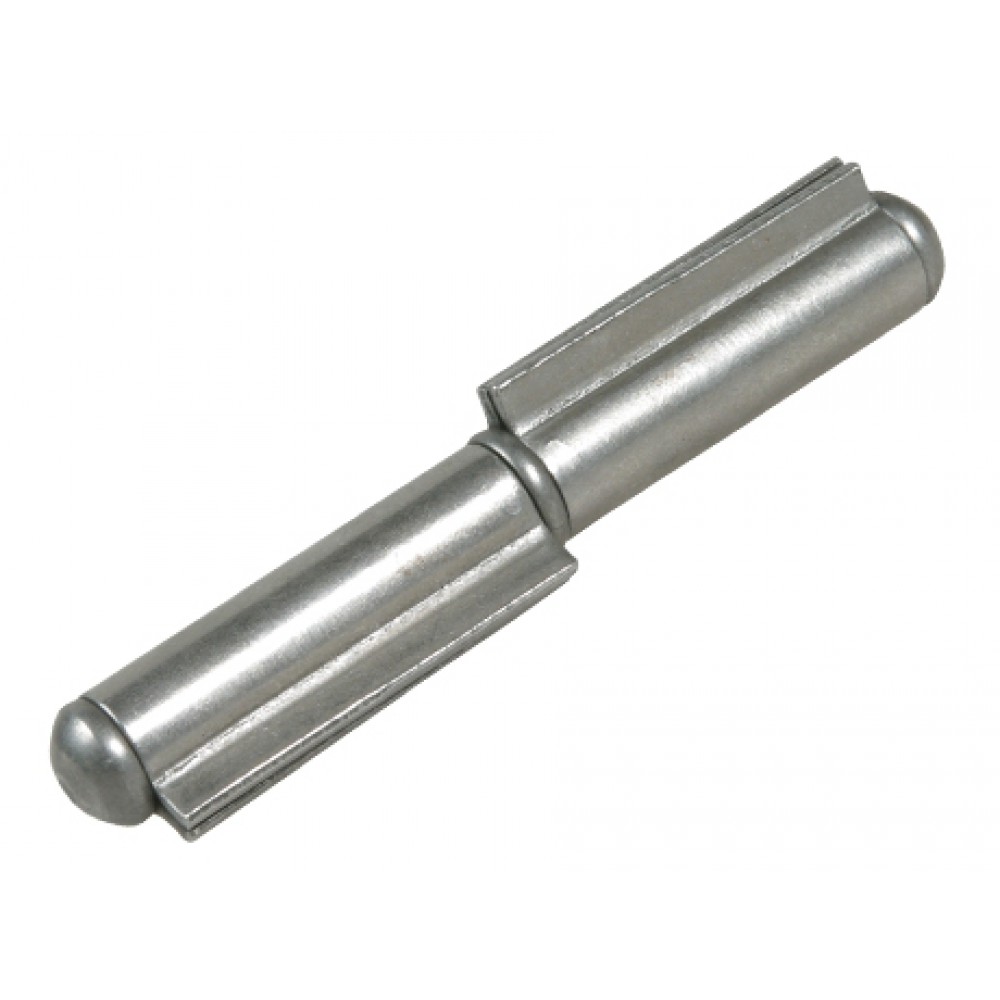

Plug Hinge with Fixed Pin to Be Welded Steel IBFM
Natural steel - white galvanized pin.

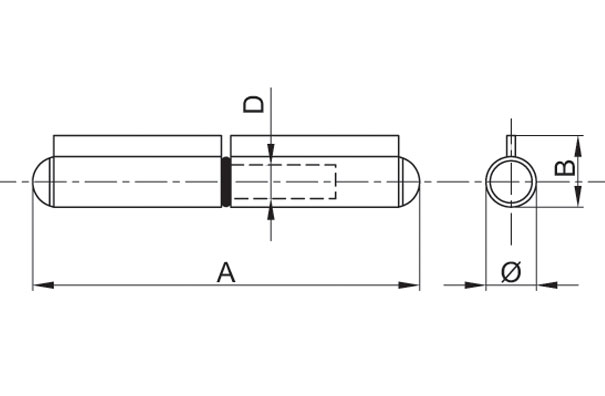

Choose the characteristics of the hinge according to the length of A:
| A mm |
60 |
80 |
100 |
120 |
140 |
170 |
200 |
| Ø mm |
12 |
12 |
13,5 |
14,5 |
16 |
17 |
20 |
| B mm |
17 |
17 |
19 |
20 |
21 |
23,5 |
26,5 |
| D mm |
8 |
8 |
9 |
10 |
11 |
12 |
14 |
| Capacity kgx2 |
40 |
50 |
70 |
90 |
90 |
100 |
120 |
