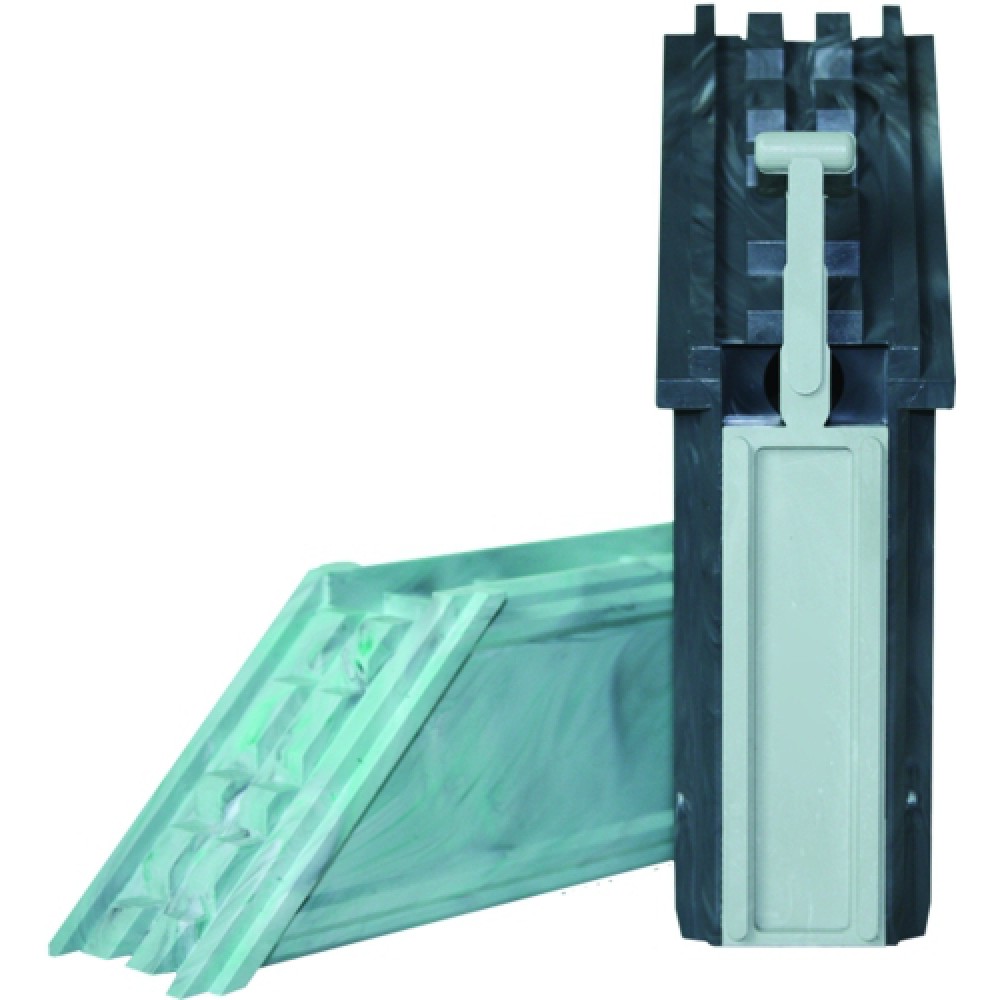

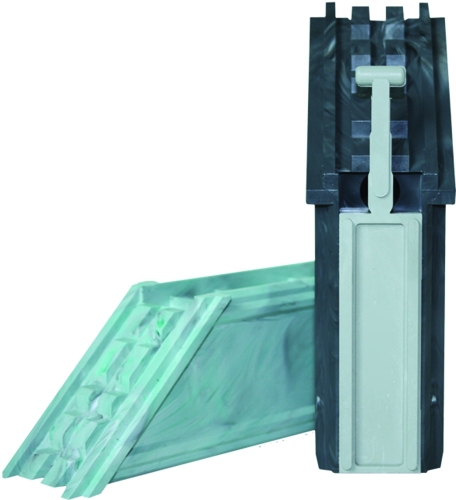

Coupling Angular sealable PVC HEICKO Segatori

Brands: Heicko Segatori

Code: Giunti Angolari Heicko

-20%

€ 1,56 € 1,95

Prices excluding VAT

Heicko PVC Joint Angle Dimensions

Minimum order quantity: 50

Delivery time: about 10 working days.

Quantity

- +

Coupling Angular sealable PVC HEICKO Segatori

Product Features:

Easy insertion with manual positioning;
Greater torsional strength with the inclusion in the reinforcements;
Precise adjustment profile;
Welding temperature (230-240 ° C);
High resistance value;
Wide range of sizes for all current profiles;
Locking accurate;
Tested and checked by IFT, why not further tests are needed for mandatory CE marking.

Choose the size according to the characteristics you are looking for:
Item code	Description	Dimensions (Mm)
1092-30-40-1.5	Corner joints welded MEV for Schueco, LB	30x40x1,5
1092-30-40-2	Corner joints welded MEV for Schueco CT 70	30x40x2
1092-32-41-2	Corner joints welded MEV for Schueco CT 70	32x41x2
1092-35-40-2	Corner joints welded MEV for Veka, Aluplast, Gealan	35x40x2
1092-40-40-1.5	Corner joints welded MEV for Inoutic, Deceunick Aluminium	40x40x1,5
1092-40-40-2	Corner joints welded MEV for Roplasto, Deceunick, Trocal, Schueco Bruegmann, KBE, Rehau	40x40x2
1092-45-45-2	Corner joints welded MEV for Deceunick	45x45x2
1092-50-35-2.5	Corner joints welded MEV for Inoutic	50x35x2,5
1092-50-40-2	Corner joints welded MEV for Aluplast, Bruegmann, KBE, Koemmerling, Rehau, Salamander, Schueco	50x40x2
1092-50-50-2	Corner joints welded MEV for Aluplast 7000	50x50x2
1092-50-40-3	Corner joints welded MEV for Gealan, KBE, Koemmerling, Rehau, Salamander, Aluplast	50x40x3
1092-50-45-2	Corner joints welded MEV for Inoutic	50x45x2
1092-55-45-2	Corner joints welded MEV for Inoutic	55x45x2
1092-55-49-2.5	Corner joints welded MEV for Inoutic Eforte	55x49x2.5
1092-55-45-2.5	Corner joints welded MEV for Inoutic	55x45x2,5
1092-58-42-2	Corner joints welded MEV for Gealan Stahl 3000/6000	58x42x2
1092-60-40-2	Corner joints welded MEV for Trocal, Veka, Roplasto Bruegmann	60x40x2
1092-60-40-3	Corner joints welded MEV for Trocal, Veka, Roplasto	60x40x3
1092-60-45-2	Corner joints welded MEV for Veka Tropline, Salamander	60x45x2
1092-60-46-2	Corner joints welded MEV for Gealan Stahl 8000	60x46x2
1092-64-41.3-2	Corner joints welded MEV for Trocal	60x41,3x2
1092-65-45-2	Corner joints welded MEV for Veka Softline Topline	65x45x2
1092-65-45-3	Corner joints welded MEV for Veka Softline Topline	65x45x3
