Chain Actuator C25 230V Topp 50Hz 1 Push Point Black Gray or White

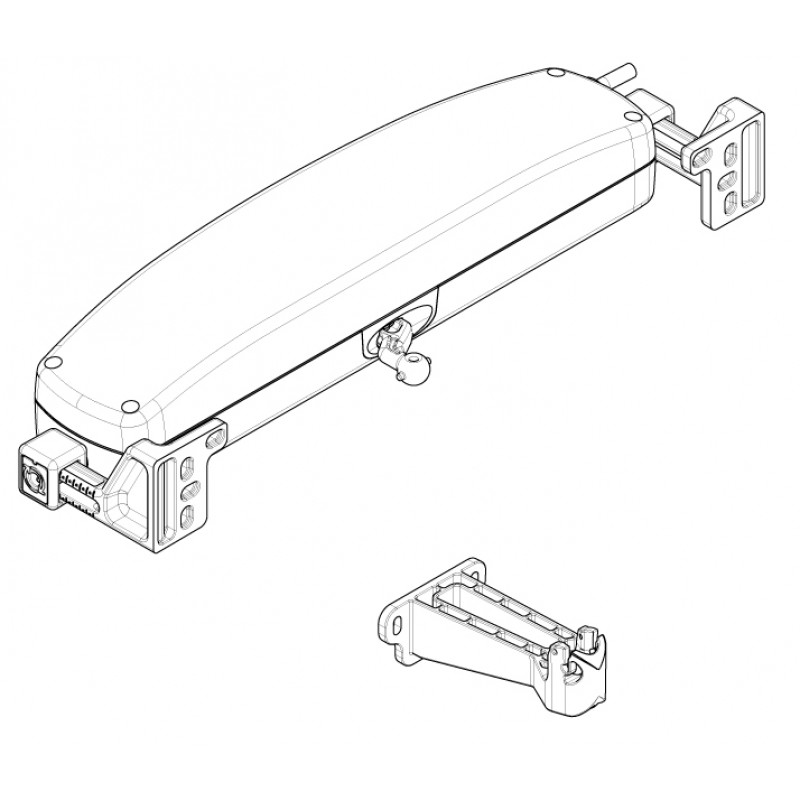

Topp electric actuator model C25 230V with double-link articulated chain, contained in a special casing, complete with support and accessories for top-hung or bottom-hung opening.
- Operation 230V 50Hz.
- Maximum applicable load 200N.
- Quick coupling attachment to the frame.
- Stroke adjustable from outside by selector switch with stops at 200mm and 380mm.
- Electronics with buzzer and user signal Wrong assembly;
- CE marked device.
Technical characteristics chain actuator C25 230V Topp
- Supply voltage: 230V 50Hz;
- Maximum applicable load in traction: 300N;
- Strokes: 200 and 380mm;
- Absorption: 0.23A;
- Power: 45W;
- No-load travel speed: 37mm/s;
- Duration of idle stroke: 11s;
- Double electrical insulation: yes;
- Type of service: S2 of 4min;
- Operating temperature: - 5 / + 50 °C;
- Degree of protection for electrical devices: IP30;
- Overlay bracket adjustment: 30mm max;
- Parallel connection of 2 or more actuators: yes;
- Acoustic device for signaling incorrect assembly: yes.
Applications: bottom-hung windows, top-hung windows, cupolas, dormer windows, roof windows.
Included in the package: chain actuator (small parts included), tilting front mounting bracket, frame attachment and small parts, bottom hung bracket.
C25 Topp actuator and brackets are black, gray or white (depending on the color chosen).
C25 230V standard 1 push point
Code |
Description |
3A80001 |
C25 230V Chain Actuator - Black |
3A80003 |
Chain Actuator C25 230V - Grey |
3A80002 |
Chain actuator C25 230V - White |
